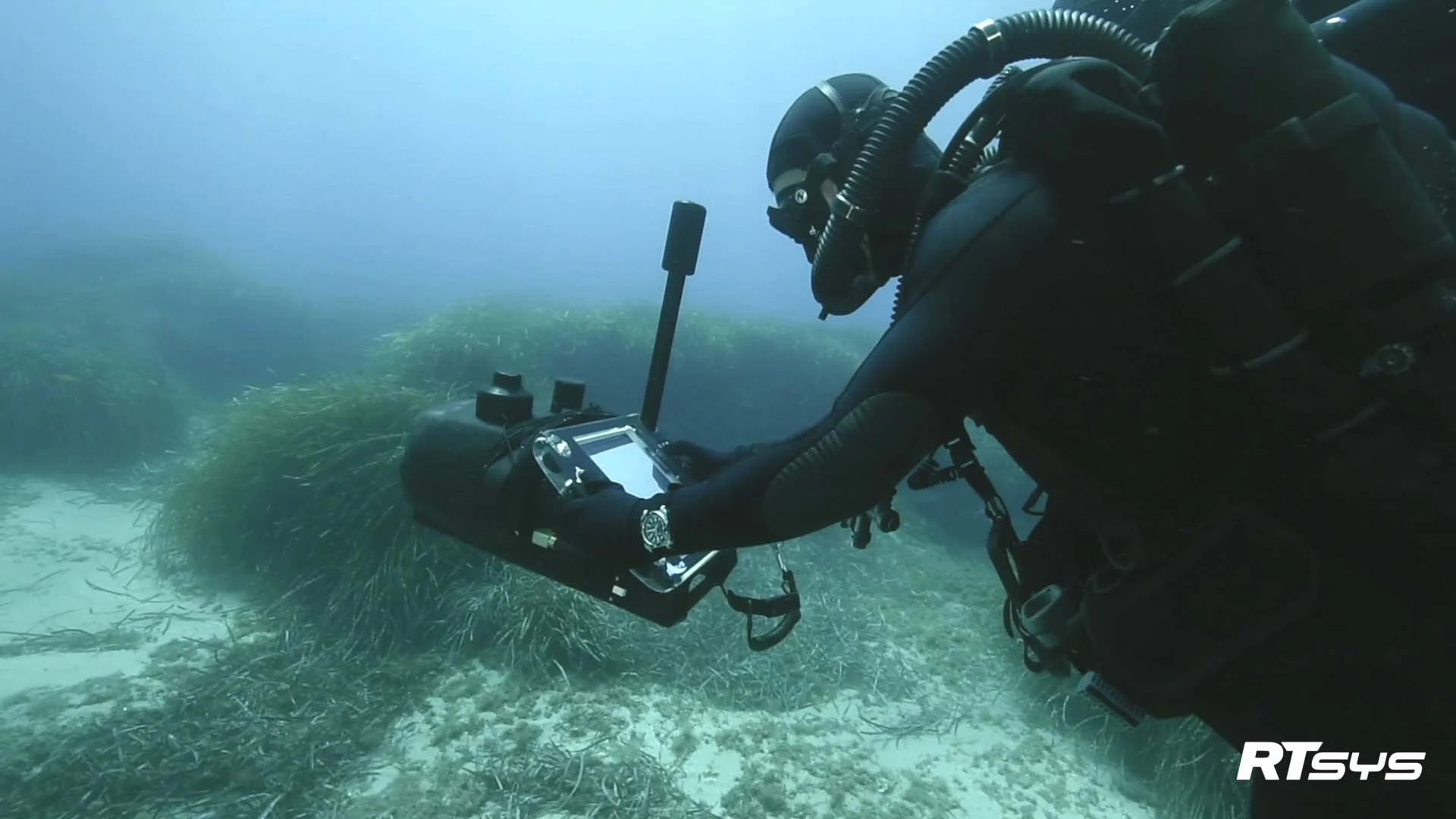

SONADIVE: Advanced Sonar & Navigation Solution for Divers

SONADIVE assists EOD divers during recognition or object detection missions. Divers can communicate all together and with the surface unit in real-time via an acoustic modem, sharing contacts and text messages within more than 2 km range, reaching up to 5 km using RTsys relay beacons.

Sonar and navigation data are fully recorded allowing mission replay, data analysis and export. With 6 hours of battery life, the endurance can be extended by swapping batteries under water during mission.

CHARACTERISTICS

  • BlueView 2D multi-beam sonar: 450 kHz or 900/2250 kHz

  • HD TV camera and light

  • Acoustic communication: 20 to 30 kHz Discrete mode

  • Large screen: 12˝, visible in all water conditions

  • Gradiometer: high performance fluxgate

  • Navigation: GPS – INS – DVL – Pressure sensor

  • Size: H 27 cm – W 37.2 cm – L 56 cm

  • Weight: less than 20 kg in air Neutral buoyancy

  • Depth rating: 100 m

  • Autonomy: 6 hours

nemosens micro auv

NEMOSENS is a micro AUV designed for interventions up to 300 m depth, with a specific focus for missions in very shallow water (less than 5 m water column).

sema - ASW

RTSYS supports Navies worldwide to enhance ASW capabilities with dedicated solutions such as training targets, sonar performances control devices as well as acoustic signature acquisition and analysis

Sonablow - MCM

SonaBlow integrates RTsys MCM manned-unmanned teaming solution giving now a full autonomy to EOD and Combat Divers for Identification, localization, classification and neutralization of mines.
