Acoustic Imaging Solution
The HERTZINNO Acoustic Camera is a versatile diagnostic platform that combines advanced acoustic imaging with optional multi‑sensor modules. It enables fast and accurate detection of partial discharges, gas leaks, and mechanical faults, making it a powerful tool for industrial maintenance and troubleshooting.
Applications
Partial Discharge Detection
HERTZINNO’s acoustic cameras incorporate AI‑assisted PRPD (Phase‑Resolved Partial Discharge) pattern recognition to provide reliable PD assessment. This enables more consistent and higher‑confidence identification of discharge types and severity across electrical assets.
Gas Leak Detection
Using a combination of time‑domain, spatial‑domain, and AI‑based filtering/denoising, the system achieves stable leak visualization—even in loud industrial environments. This allows accurate locating of leaks in compressed air systems, process gases, hydrogen lines, and more.
Abnormal Noise Detection
With analytics based on crest factor, kurtosis, and spectral variance, HERTZINNO’s acoustic cameras can pinpoint bearing wear, rubbing, imbalance, and other mechanical issues. These features make it possible to isolate fault sounds without interference from surrounding environmental noise.

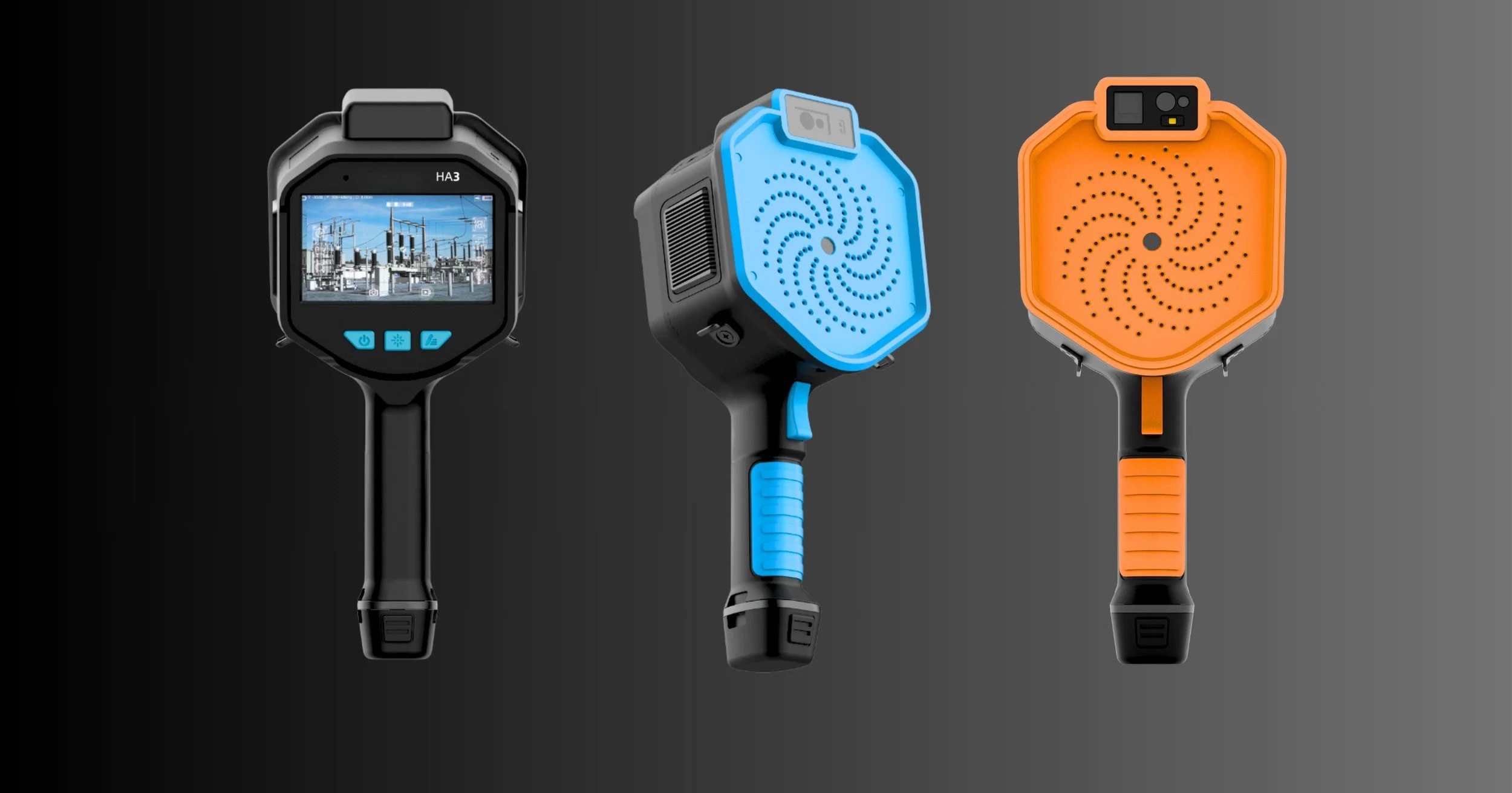

HA3 Series
The HA3 Series represents our newest line of industrial‑grade acoustic cameras, designed for broad use across power systems, oil & gas facilities, and general industrial environments.
The lineup includes multiple configurations—standard, ATEX‑certified, infrared temperature measurement, and laser methane detection—along with flexible data connectivity such as Bluetooth and Wi‑Fi.
Advanced noise‑reduction processing and AI‑based sound recognition allow the HA3 Series to locate and identify partial discharges, gas leaks, and mechanical faults, even in harsh, high‑noise environments.

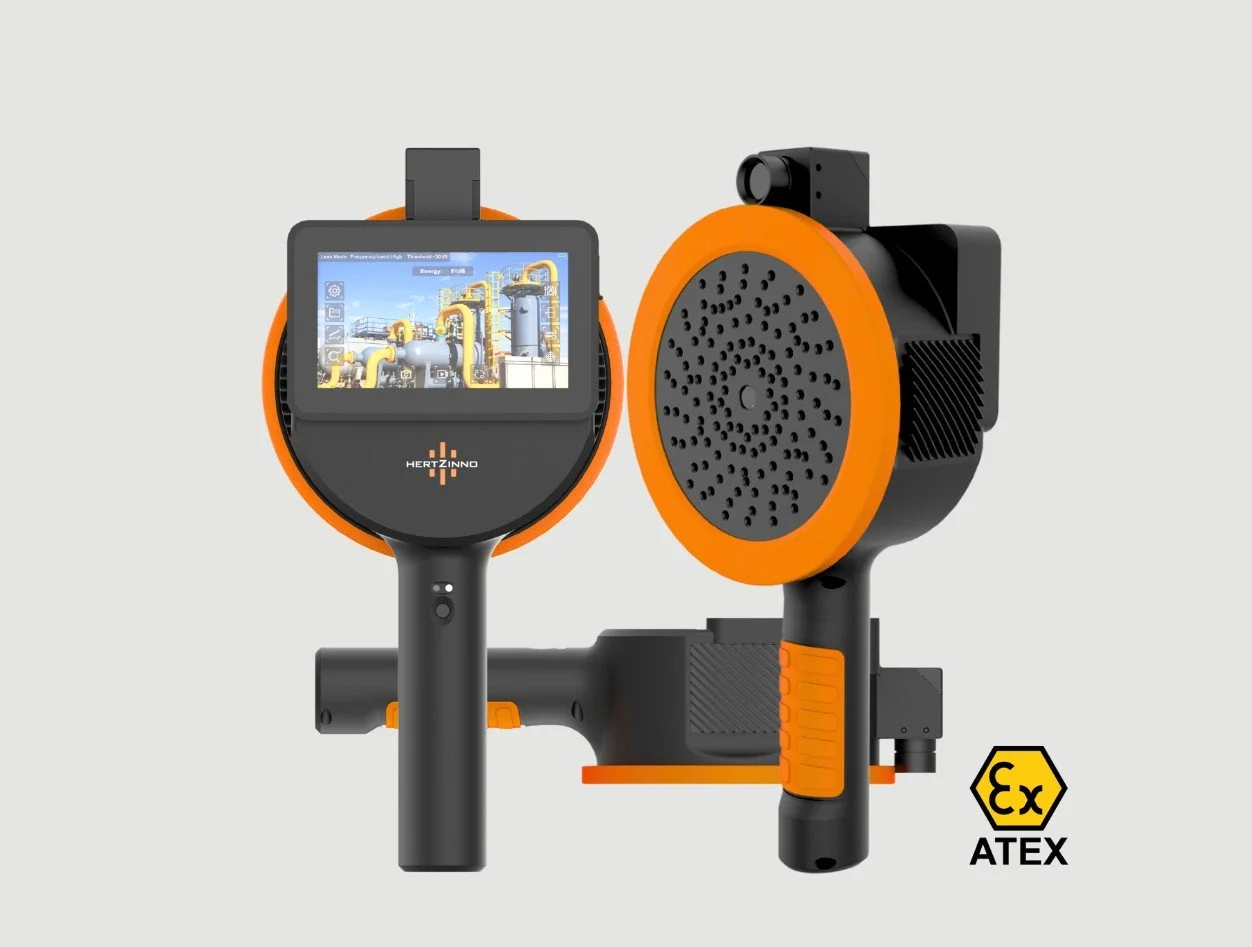

HA1 & HA2 Series
The HA1 and HA2 series acoustic cameras are built for demanding industrial environments, each model tailored to specific professional needs.
The 170P and 270P models offer robust explosion‑proof protection, making them exceptionally well‑suited for gas leak detection in hazardous or ATEX‑regulated areas.
The HA171P and HA271P models provide extended operating time, advanced AI‑based PRPD pattern recognition, and the infrared capabilities found in the HA2 platform. These features make them highly effective for power‑industry applications, delivering precise fault identification and comprehensive equipment diagnostics.
Advantages of HERTZINNO Acoustic Technology
Cost‑Effective
By integrating acoustic imaging and thermal sensing into a single device, the system can identify partial discharges, detect gas leaks, and reveal temperature abnormalities—reducing the need for multiple inspection tools.
User‑Friendly Design
Built for single‑handed operation with an intuitive and easy‑to‑navigate interface, the camera is optimized for inspectors and field engineers who need fast, straightforward diagnostics.
AI‑Enhanced Analysis
Integrated AI algorithms assist with partial discharge classification, gas leak quantification, and temperature evaluation, enabling engineers to make accurate decisions with minimal manual interpretation.
