HA1 & HA2 Series
Handheld Acoustic Imaging System
The HA3 Series is HERTZINNO’s newest generation of portable acoustic imaging devices, engineered for demanding applications in the power, petrochemical, and mechanical sectors. With redesigned hardware, upgraded software, and enhanced AI‑driven processing, the HA3 lineup delivers fast and precise detection of partial discharges, gas leaks, and mechanical irregularities—even in challenging, high‑noise environments.
Multi‑sensor integration: Acoustic imaging combined with infrared and methane laser sensing (model‑dependent)
AI‑enhanced diagnostics: Identifies partial discharge patterns, quantifies gas leaks, and analyzes mechanical noise
Compact and mobile: Under 1100 g, up to 4 hours runtime, dual‑battery design
Intelligent connectivity: Wi‑Fi, Bluetooth, and real‑time data transmission with automated reporting
Industrial Acoustic Imaging System
For Partial Discharge Detection, Gas Leak Localization & Mechanical Fault Diagnostics
The Longest‑Endurance One‑Hand Portable Acoustic Camera

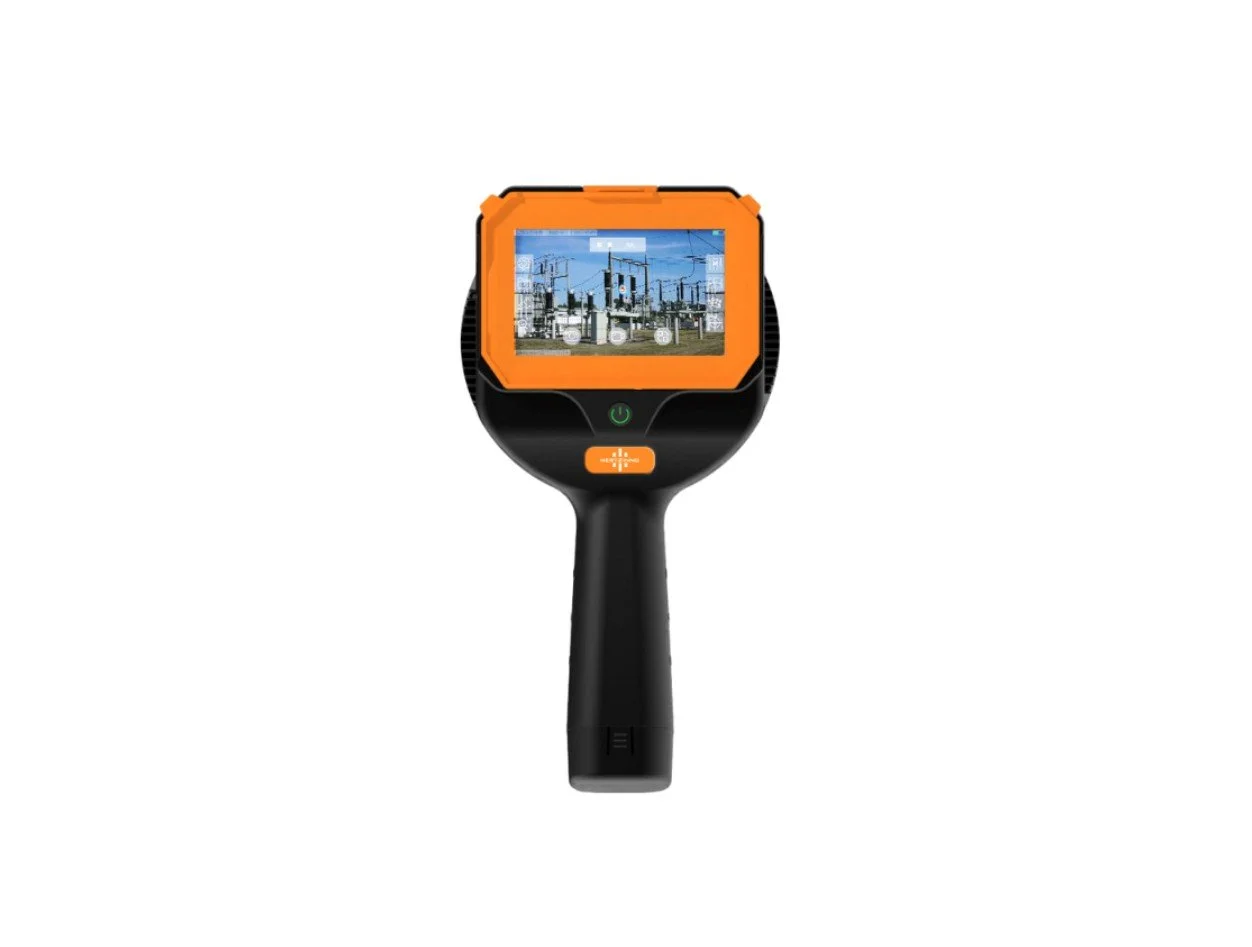

The HZ‑HA‑171P is designed for field technicians who need a high‑performance, single‑handed acoustic imaging tool with exceptional operating time. Built on a Rockchip ARM processing platform and equipped with a 128‑element low‑noise MEMS microphone array, the system delivers an industry‑leading 7 hours of continuous operation.
Its advanced architecture—featuring separated FPGA processing modules and dedicated sampling ASICs—provides outstanding sensitivity, reliable imaging stability, and an overall lightweight design of only 1.1 kg.
128 low‑noise MEMS microphones
Supports: Partial discharge detection, gas leak identification, mechanical fault analysis
Data connectivity via Wi‑Fi and USB
Intelligent analytics: Automatic PD classification, gas leak rate estimation, and mechanical noise evaluation
AI‑generated partial discharge diagnostic reports
Industrial Acoustic Imaging System
For Partial Discharge Detection, Gas Leak Localization & Mechanical Fault Diagnostics**

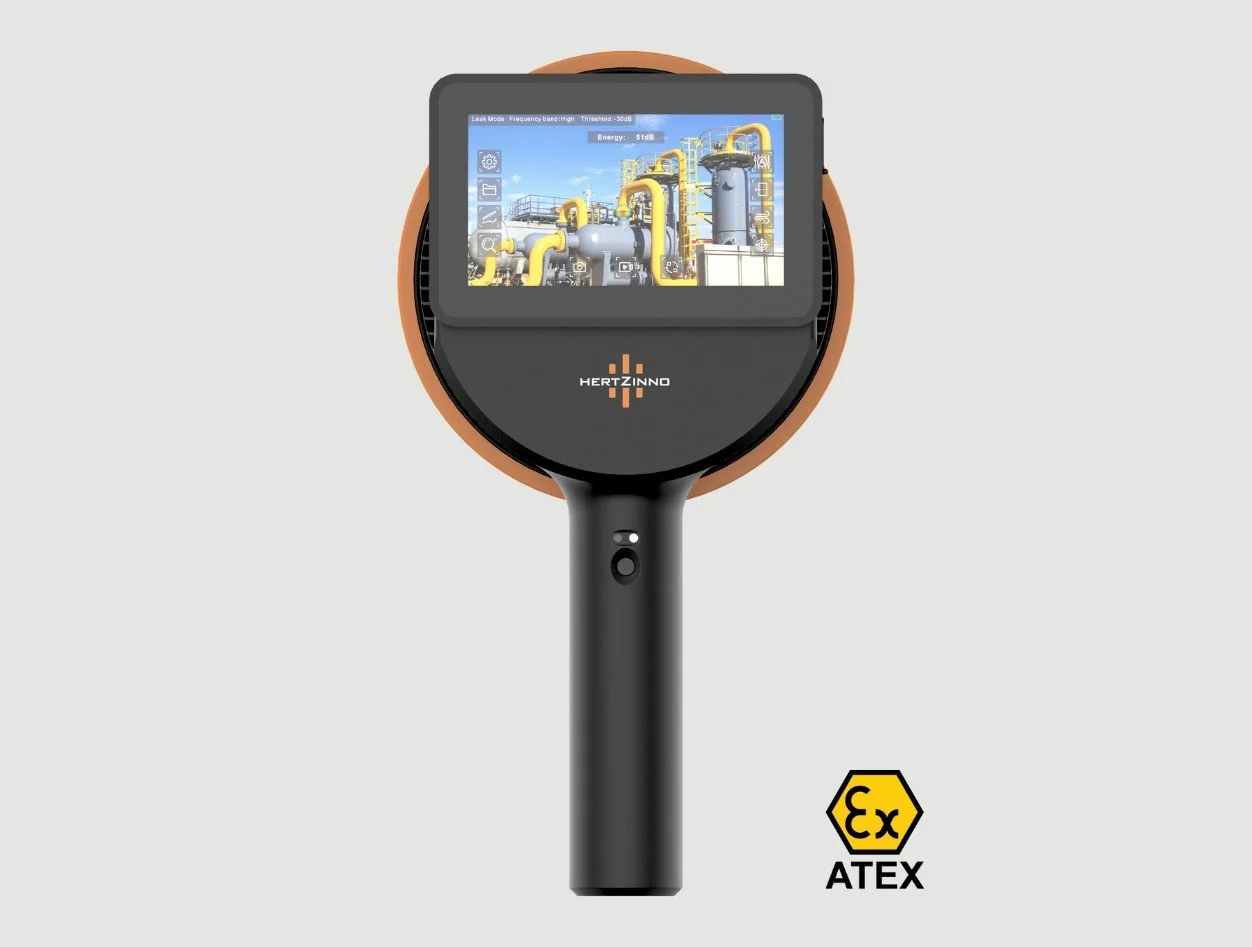

The HZ‑HA‑170P is one of HERTZINNO’s most advanced intrinsically safe acoustic imaging devices, built specifically for use in hazardous industrial environments. Equipped with 138 digital MEMS microphones and enhanced AI‑powered analysis, it combines exceptional sensitivity with a compact, lightweight design of only 980 g. Despite its rugged safety rating, the system delivers high performance with remarkably low power consumption.
Operating across a wide 2 kHz to 100 kHz ultrasonic range, the HZ‑HA‑170P is engineered to detect, locate, and analyze partial discharge events, pressurized gas leaks, and abnormal mechanical noise patterns.
Key Features:
138 low‑noise MEMS microphones
Ultrasonic bandwidth: 2 kHz – 100 kHz
Supports: Partial discharge detection, gas leak identification, mechanical fault assessment
AI‑assisted analysis: PD type recognition and gas leak evaluation
ATEX‑certified for explosive‑risk environments
Industrial Acoustic Imaging System
For Partial Discharge Detection, Gas Leak Localization & Mechanical Fault Diagnostics

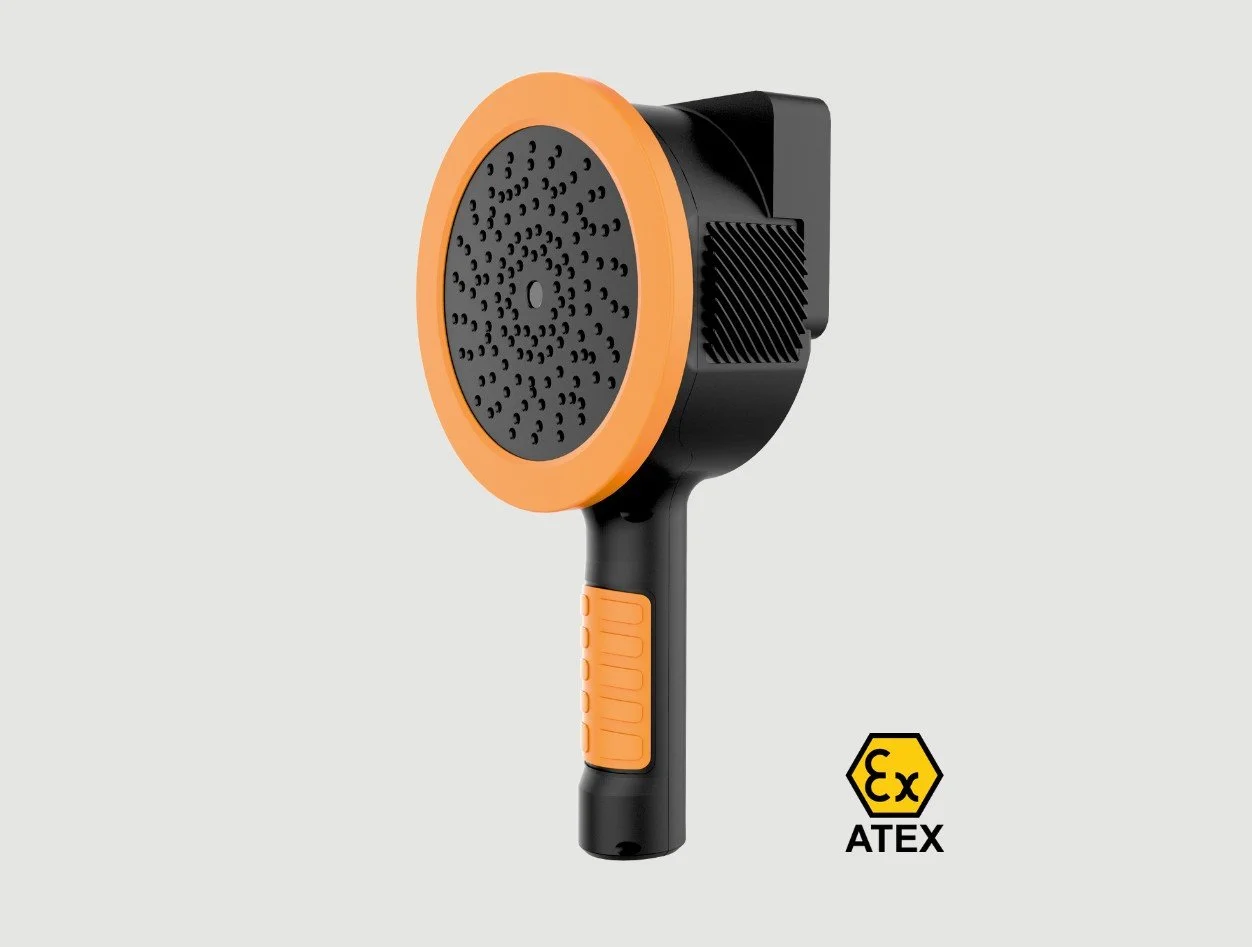

The HZ‑HA‑270P is one of the most advanced intrinsically safe acoustic imaging platforms available today. Designed for hazardous industrial environments, it integrates 138 digital MEMS microphones, AI‑enhanced diagnostics, and a high‑resolution 640 × 512 infrared imaging module—combining acoustic and thermal insights in a single portable device.
Despite its rugged certification, the 270P maintains a lightweight form at 1,000 g and delivers high performance with exceptionally low power consumption. Operating across a wide 2 kHz to 100 kHz ultrasonic spectrum, it provides precise detection and analysis of partial discharge activity, pressure‑driven gas leaks, and abnormal mechanical noise.
Key Features
138 low‑noise MEMS microphones
640 × 512 high‑resolution IR camera
Ultrasonic frequency range: 2 kHz – 100 kHz
Supports: Partial discharge detection, gas leak identification, mechanical fault diagnosis
AI‑assisted analytics: PD type classification, gas leak assessment
ATEX‑certified for safe use in explosive or high‑risk environments
Industrial Acoustic & Thermal Imaging System
For Partial Discharge Detection, Gas Leak Localization, Mechanical Fault Diagnostics & Temperature Monitoring

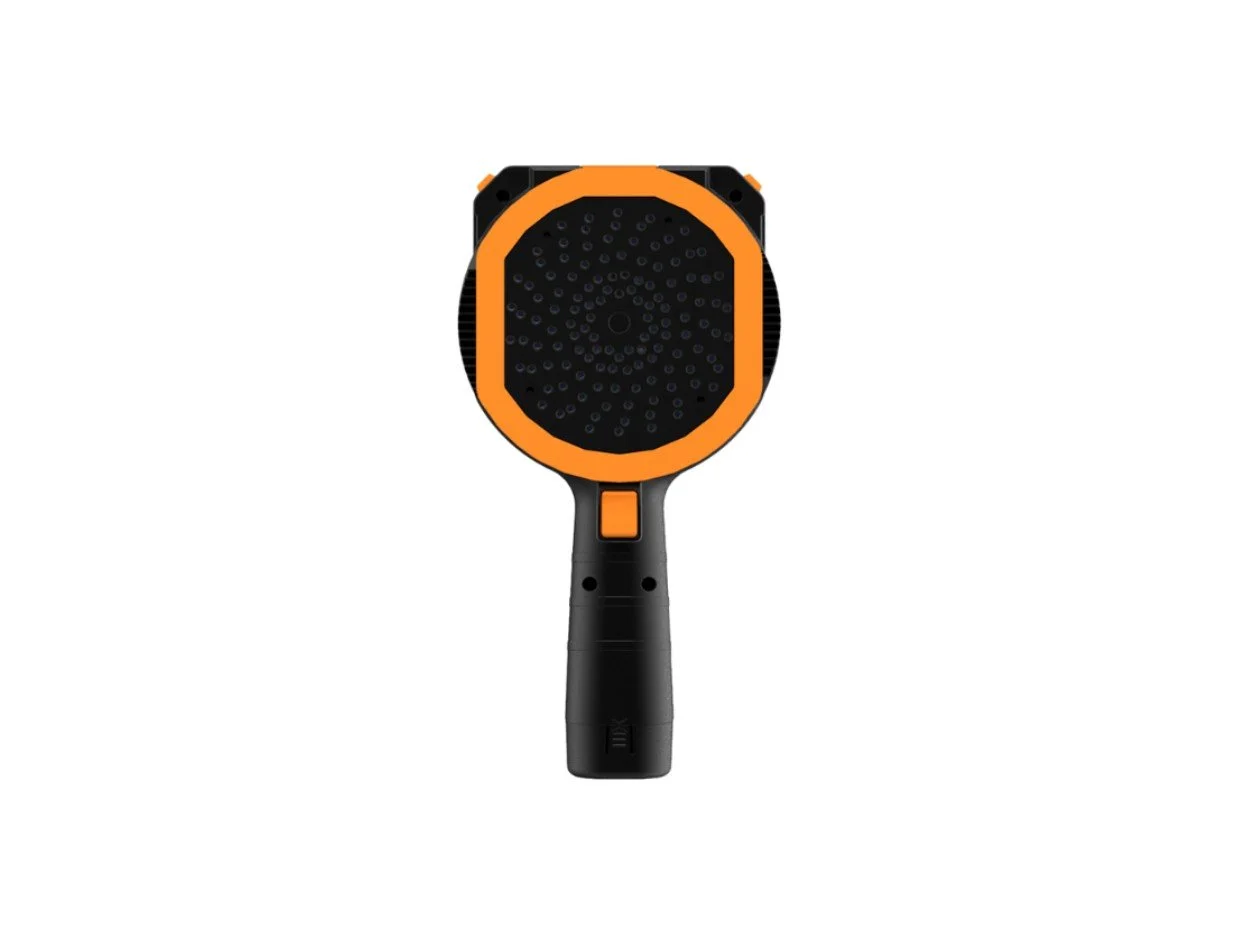

The HZ‑HA‑271P is a next‑generation industrial inspection camera combining both an acoustic module and a thermal imaging module in a single device. Designed for electrical, mechanical, and utility maintenance teams, it provides an efficient and cost‑effective solution for identifying partial discharge (PD) issues as well as temperature‑related anomalies.
With its integrated 640 × 512 thermal sensor, the system can reveal overheating, resistance‑related faults, and thermal irregularities in electrical components. At the same time, the acoustic module detects, locates, and classifies PD activity, gas leaks, and mechanical faults such as bearing degradation.
This 4‑in‑1 camera offers a versatile inspection platform that meets the needs of facilities requiring comprehensive monitoring across electrical, mechanical, and gas‑intensive systems.
Key Capabilities:
Dual‑module design: Acoustic imaging + 640×512 thermal imaging
PD diagnostics: Detection, localization, and classification of partial discharge faults
Thermal inspection: Identification of temperature anomalies and resistance‑related issues
Gas leak detection: Ultrasonic localization of pressurized gas leaks
Mechanical analysis: Detection of abnormal noise patterns, including bearing faults
All‑in‑one solution: A single device providing four core diagnostic functions
Partial Discharge Detection
Partial discharge (PD) refers to small, localized breakdowns within insulation systems that do not create a complete electrical short. These tiny electrical events release high‑frequency electromagnetic energy, ultrasonic signals (typically 20–500 kHz), and chemical byproducts such as ozone. If not detected and corrected early, PD can accelerate insulation deterioration and ultimately lead to serious equipment damage or failure.
Gas Leak Detection
Ultrasonic leak detection works by capturing high‑frequency acoustic energy—typically in the 20–100 kHz range—produced when pressurized gases escape through small openings. As gas rushes through a leak point, turbulence creates distinct ultrasonic signatures; smaller leak paths usually generate higher‑frequency noise. This allows both accurate localization and the ability to estimate leak severity.
Acoustic imaging technology identifies leaks based on pressure‑driven sound alone, meaning detection is independent of the type of gas. This makes the system suitable for compressed air, inert gases, hydrogen, SF₆, natural gas, oxygen, and a wide range of other industrial gases.
HERTZINNO’s acoustic cameras can detect leaks of compressed air, combustible gases, hydrogen, oxygen, and various inert or hazardous gases from long distances—even in complex environments.
In addition, the built‑in leak analysis module can estimate the leakage rate while simultaneously identifying the source. This helps operators better understand potential losses, prioritize maintenance, and improve system efficiency.
Mechanical Abnormal Sound Detection
Rotating machinery—such as motors, gearboxes, pumps, and fans—produces distinctive acoustic signatures when faults occur. Issues like bearing wear, blade imbalance, loose components, or misalignment generate characteristic noise patterns that can be identified early through acoustic analysis.
HERTZINNO’s acoustic camera uses its multi‑microphone array to visualize the sound field in real time. By converting acoustic intensity into a live heat map, the system pinpoints the exact origin of abnormal noise. This greatly reduces troubleshooting time and helps maintenance teams locate faults before they escalate.
