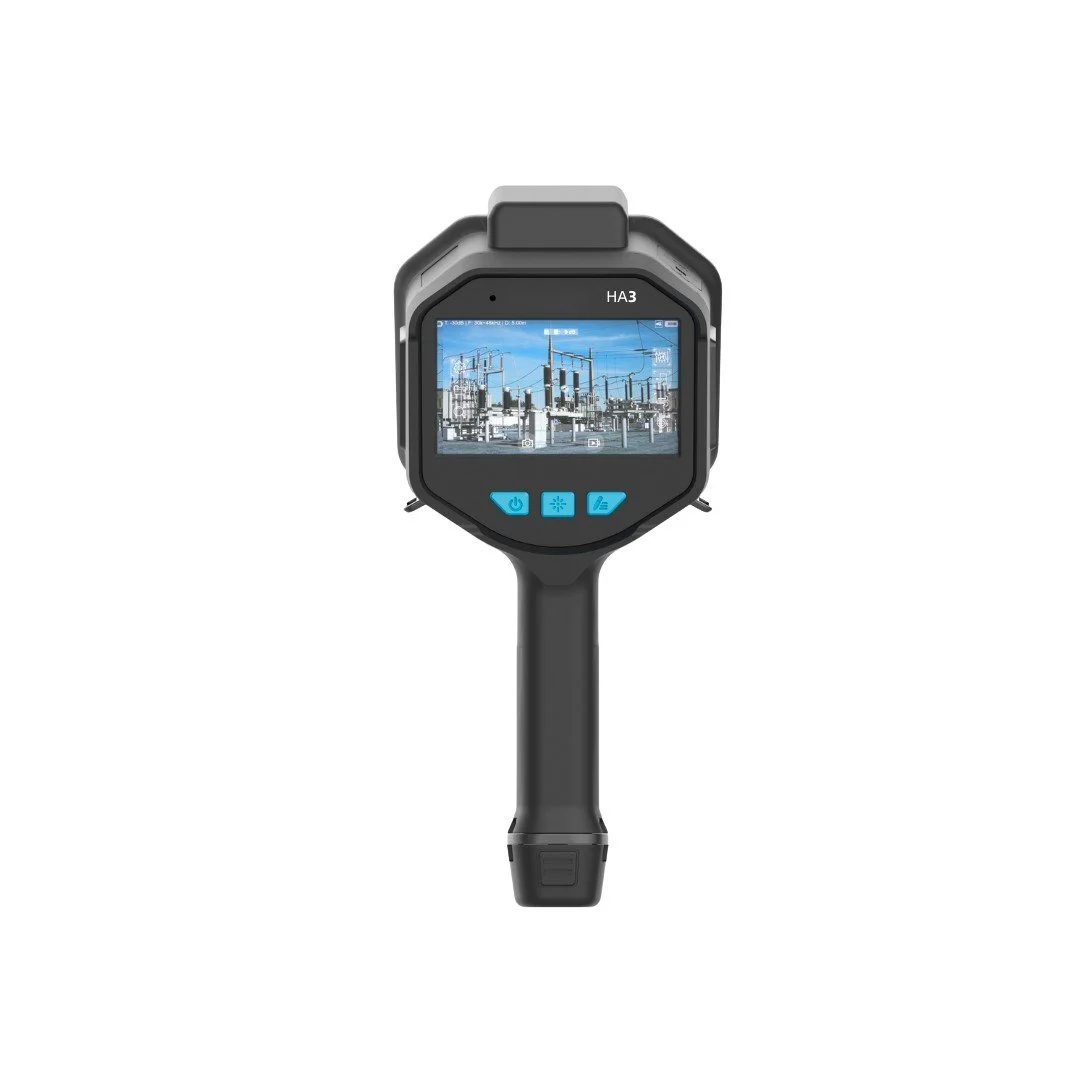

HA3 Series
Handheld Acoustic Imaging System
The HA3 Series is HERTZINNO’s newest generation of portable acoustic imaging devices, engineered for demanding applications in the power, petrochemical, and mechanical sectors. With redesigned hardware, upgraded software, and enhanced AI‑driven processing, the HA3 lineup delivers fast and precise detection of partial discharges, gas leaks, and mechanical irregularities—even in challenging, high‑noise environments.
Multi‑sensor integration: Acoustic imaging combined with infrared and methane laser sensing (model‑dependent)
AI‑enhanced diagnostics: Identifies partial discharge patterns, quantifies gas leaks, and analyzes mechanical noise
Compact and mobile: Under 1100 g, up to 4 hours runtime, dual‑battery design
Intelligent connectivity: Wi‑Fi, Bluetooth, and real‑time data transmission with automated reporting
The HA3 series is a next‑generation acoustic camera designed with a high‑density array of 144 low‑noise MEMS microphones, versatile positioning modes, and enhanced AI processing. It offers a lightweight, fast, and intelligent solution for identifying partial discharges, locating gas leaks, and diagnosing mechanical issues.
144 low‑noise MEMS microphone array
Supports: Partial discharge detection, gas leak localization, mechanical fault analysis
Integrated WiFi, Bluetooth, and electronic compass
Intelligent functions such as: Automatic classification of partial discharge types, gas leakage rate estimation, and mechanical noise analysis
AI‑driven report generation

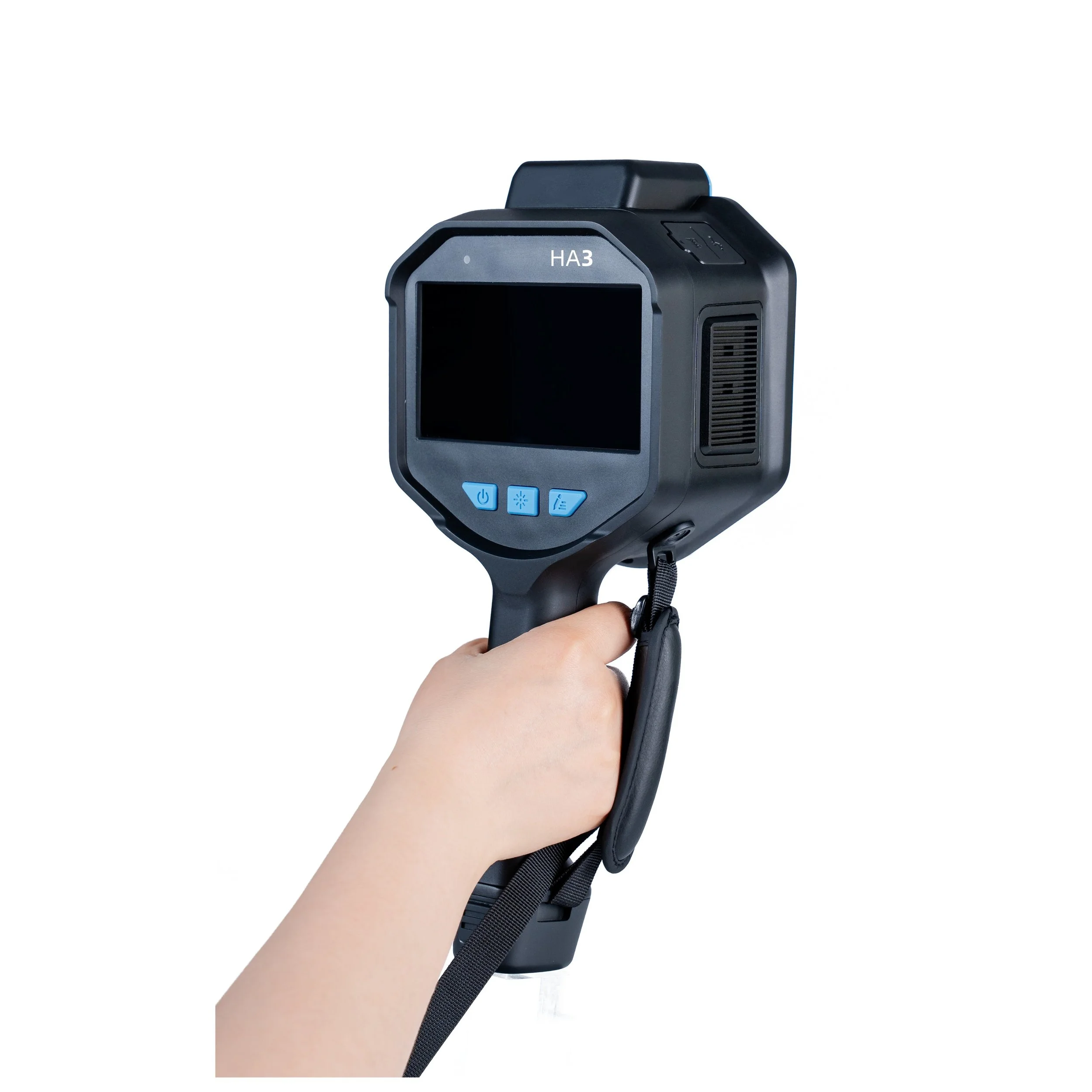

Industrial Acoustic & Thermal Imaging Camera for Partial Discharge Detection, Gas leak Detection, Mechanical Fault Detection.
The HA3 series represents a new level of acoustic and infrared inspection technology. It combines a sophisticated 144‑microphone MEMS array, multiple positioning modes, and upgraded AI processing to provide a lightweight, responsive, and highly intelligent tool for identifying partial discharges, locating gas leaks, and diagnosing mechanical faults.
144 ultra‑low‑noise MEMS microphones
640 × 512 infrared imaging sensor
Designed for: Partial discharge detection, gas leak localization, and mechanical fault assessment
Built‑in WiFi, Bluetooth, and electronic compass
Smart features include: Automatic classification of partial discharge patterns, calculation of gas leakage rates, and mechanical noise evaluation
AI‑supported reporting for both acoustic and thermal imaging analysis
Industrial Acoustic & TDLAS Imaging System
For Partial Discharge Detection, Gas Leak Localization & Mechanical Fault Diagnostics

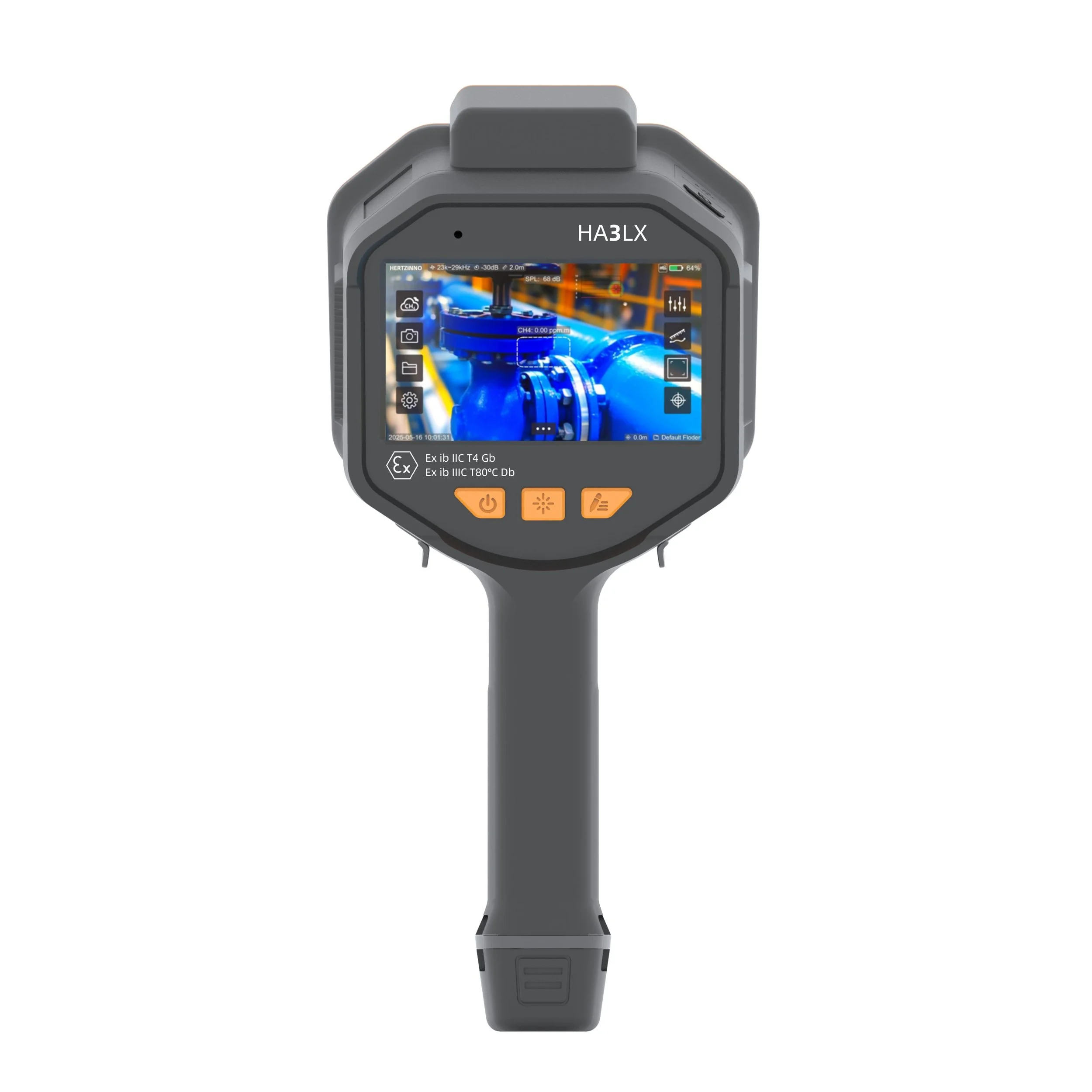

HA3LX
The HA3LX is an advanced third‑generation acoustic and TDLAS‑equipped inspection camera. Built around a high‑density 144‑channel MEMS microphone array, combined with multiple positioning modes and upgraded AI capabilities, it offers a compact, fast, and highly intelligent solution for identifying partial discharges, pinpointing gas leaks, and evaluating mechanical issues in industrial environments.
144 low‑noise MEMS microphones
Integrated methane (CH₄) concentration sensor using TDLAS technology
Certified for ATEX environments
Suitable for: Partial discharge inspection, gas leakage detection, mechanical equipment fault analysis
Wireless connectivity via WiFi and Bluetooth, plus an electronic compass
Smart diagnostic functions: Automated identification of partial discharge characteristics, calculation of gas leak rates, and mechanical noise analysis
AI‑based reporting for both acoustic measurements and methane quantification
Industrial Acoustic Imaging System
For Partial Discharge Detection, Gas Leak Localization & Mechanical Fault Assessment
ATEX‑Certified

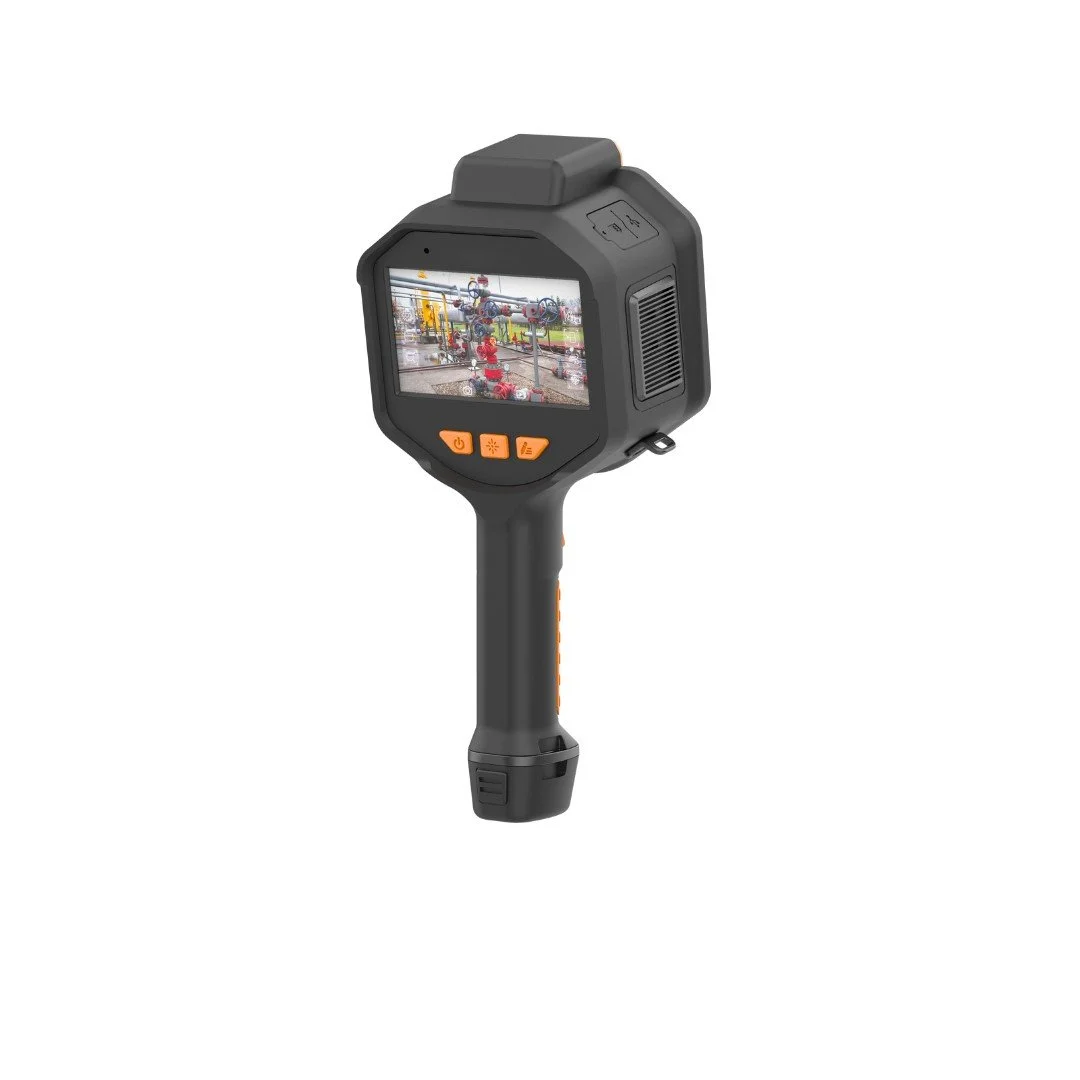

HA3X
The HA3X is an advanced third‑generation acoustic inspection device designed for use in hazardous industrial environments. It features a 144‑element low‑noise MEMS microphone array, multiple positioning methods, and enhanced AI processing, resulting in a lightweight, high‑speed, and intelligent platform for locating partial discharges, identifying gas leaks, and evaluating mechanical abnormalities.
144 low‑noise MEMS microphones
ATEX‑approved for operation in explosive‑risk zones
Optimized for: Partial discharge surveying, gas leak detection, and mechanical fault analysis
Wireless communication via WiFi and Bluetooth, plus integrated electronic compass
Intelligent analytics: Automatic classification of partial discharge patterns, calculation of gas leakage indicators, and mechanical noise assessment
AI‑generated inspection reports for acoustic diagnostics
Partial Discharge Detection
Partial discharge (PD) refers to small, localized breakdowns within insulation systems that do not create a complete electrical short. These tiny electrical events release high‑frequency electromagnetic energy, ultrasonic signals (typically 20–500 kHz), and chemical byproducts such as ozone. If not detected and corrected early, PD can accelerate insulation deterioration and ultimately lead to serious equipment damage or failure.
Gas Leak Detection
Ultrasonic leak detection works by capturing high‑frequency acoustic energy—typically in the 20–100 kHz range—produced when pressurized gases escape through small openings. As gas rushes through a leak point, turbulence creates distinct ultrasonic signatures; smaller leak paths usually generate higher‑frequency noise. This allows both accurate localization and the ability to estimate leak severity.
Acoustic imaging technology identifies leaks based on pressure‑driven sound alone, meaning detection is independent of the type of gas. This makes the system suitable for compressed air, inert gases, hydrogen, SF₆, natural gas, oxygen, and a wide range of other industrial gases.
HERTZINNO’s acoustic cameras can detect leaks of compressed air, combustible gases, hydrogen, oxygen, and various inert or hazardous gases from long distances—even in complex environments.
In addition, the built‑in leak analysis module can estimate the leakage rate while simultaneously identifying the source. This helps operators better understand potential losses, prioritize maintenance, and improve system efficiency.
Mechanical Abnormal Sound Detection
Rotating machinery—such as motors, gearboxes, pumps, and fans—produces distinctive acoustic signatures when faults occur. Issues like bearing wear, blade imbalance, loose components, or misalignment generate characteristic noise patterns that can be identified early through acoustic analysis.
HERTZINNO’s acoustic camera uses its multi‑microphone array to visualize the sound field in real time. By converting acoustic intensity into a live heat map, the system pinpoints the exact origin of abnormal noise. This greatly reduces troubleshooting time and helps maintenance teams locate faults before they escalate.
