Portascanner® WATERTIGHT Pro
lexible and Optimised for Diverse Applications
The Portascanner® WATERTIGHT PRO is suitable for a wide range of compartment and hatch dimensions. Its configuration can be adjusted to match different operational needs through several equipment options and settings, including:

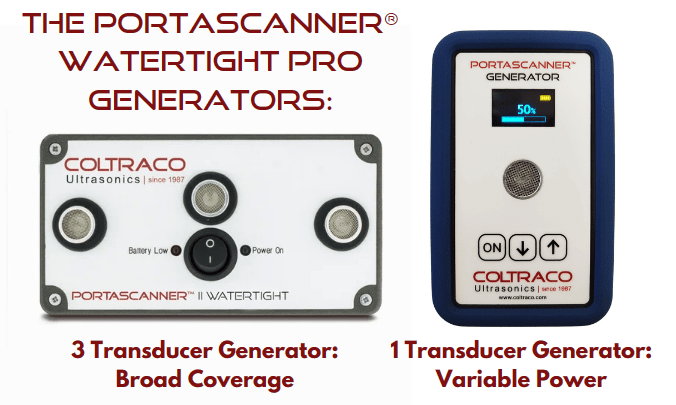

A variable‑output, single‑transducer ultrasonic generator for high‑precision leak checks
A generator with three transducers to cover larger areas more efficiently
An optional tripod to improve signal distribution in spacious cargo holds
Filtering of test records by date or location for straightforward data management
Two testing modes—quick scan and full analysis—to adapt the workflow to time or accuracy requirements

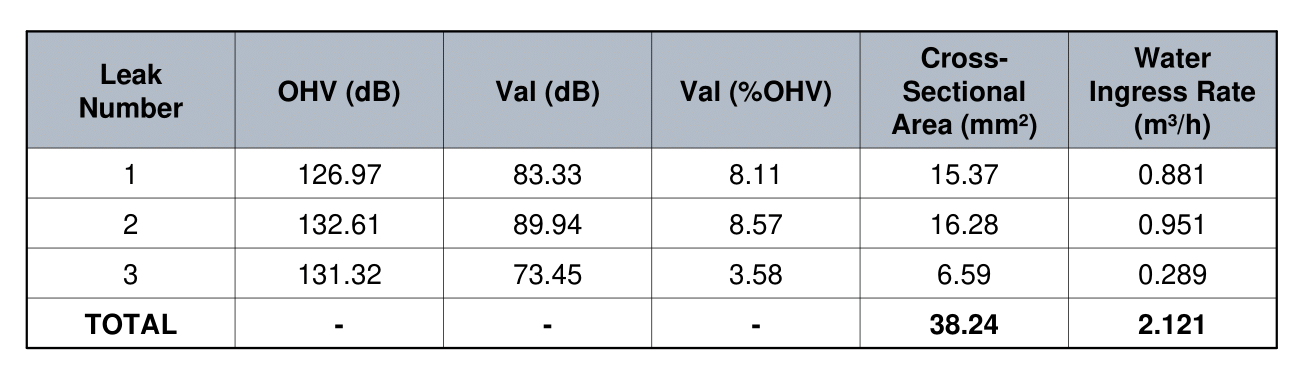

Collate Leak Rates into a Total Result:
Ultrasonic System for Assessing Watertight Integrity
The Portascanner® WATERTIGHT PRO is a portable inspection device, operated through a tablet interface, designed to evaluate the watertightness of doors, hatches, and similar structures. It can identify multiple leakage points at once, indicating both their precise locations and their estimated size. During testing, the instrument logs each detected leak and its corresponding flow rate, storing the data internally. These results can then be transferred via USB for digital documentation and reporting.
Part Number: 509004-PRO
NATO Stock Number: 6625-99-257-8336
IMPA MSG Part Number: 652778
CAGE Code: KD983 – COLTRACO LIMITED
Overview
Advanced Digital Leak Detection
The Portascanner® WATERTIGHT PRO enables users to capture an image of a hatch or test area before inspection. This image can then be used to mark the exact points where leaks are detected, making subsequent repairs and follow‑up checks straightforward. The device also calculates both individual and total leakage rates for a hatch, and can compare these values with relevant watertight and weathertight performance standards.
The system is simple to learn, and a single operator can quickly and non‑invasively test numerous hatches or sealing points in sequence. As a result, it offers a precise, user‑friendly method for supporting marine safety and meeting regulatory requirements.
Technical specifications
Main Control Unit 225 × 135 × 35 mm (length × width × depth)
Single‑Transducer Generator 112 × 67 × 25 mm
Triple‑Transducer Generator 215 × 82 × 30 mm
Receiver Wand 230 mm in length / 35 mm diameter
Weight
Main Unit 1051 g
Single‑Transducer Generator 137 g
Triple‑Transducer Generator 420 g (including batteries)
Power & Battery Specifications
Main Unit
Rechargeable Li‑Po battery, Charged via Micro‑USB
Single‑Transducer Generator
Rechargeable Li‑Po battery, Micro‑USB charging port
Triple‑Transducer Generator
Powered by two PP3 9V batteries
Battery Runtime
Main Unit Approx. 6 hours of continuous operation
Single‑Transducer Generator Approx. 6 hours of continuous operation
Triple‑Transducer Generator Approx. 12 hours of continuous use
Sensor & Frequency
Sensor Type 25 mm flexible ultrasonic receiver wand
Sensor Cable 3‑metre BNC coaxial connection
Generator Output Frequency 40 kHz
Environmental & Protection Ratings
Temperature Range Operates between –10°C and +65°C (14°F to 149°F)
Ingress Protection
Main housing: IP65
USB connectors: IP68
Display
7‑inch capacitive touchscreen
LCD with backlighting
Resolution: 1024 × 600
Detection Performance
Smallest Detectable Leak Openings as small as 0.06 mm, with ±0.02 mm tolerance
Measurement Accuracy ±10% for leak sizes from 0.5 mm to 20 mm
Certifications & Standards
Approvals
CE and UKCA compliant
Manufactured by an organisation certified to ISO 9001:2015
Additional Registrations
UKCA and CE markings applied
Produced in the UK
Company also registered to ISO 14001

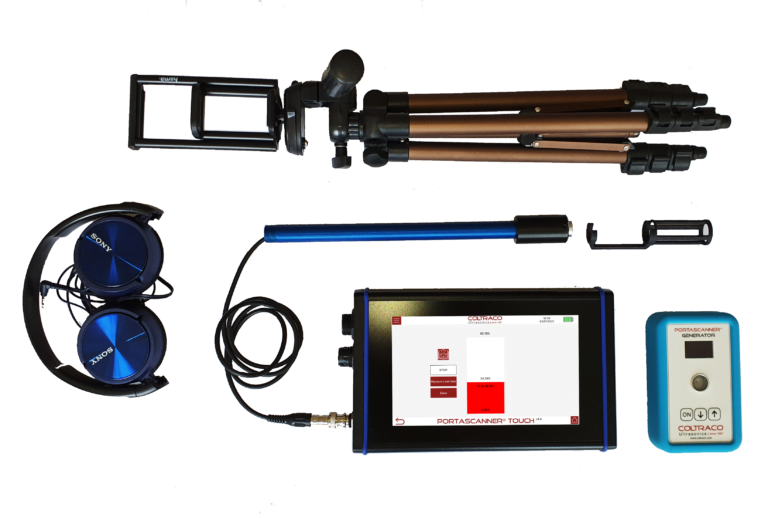

What’s Included in the Package
Portascanner® WATERTIGHT PRO: 7.0" Touchscreen Main Unit
Portascanner® 1-Transducer Ultrasonic Generator: Variable Power
Portascanner® 3-Transducer Ultrasonic Generator: Broad Coverage
Portascanner® Receiver Wand: With Guide Attachment
3m BNC Coaxial Cable: To Connect The Receiver
Charging Cable: Micro USB
Headphones: Audio Feedback Of Leak Detection
Coltraco USB Drive: 2GB USB WiFi Adaptor: Allows Internet Connectivity For Remote Updates
USB Splitter: For Simultaneous Connectivity
Generator Tripod Stand: (Optional)
User Manual: Guidance On How To Use The Equipment
Calibration Certificate: Verifies Device Functionality And Calibration On Dispatch
Robust Carrying Case: To Store The Equipment
