Industrial Acoustic Imaging System
For Partial Discharge Detection, Gas Leak Localization & Mechanical Fault Diagnostics

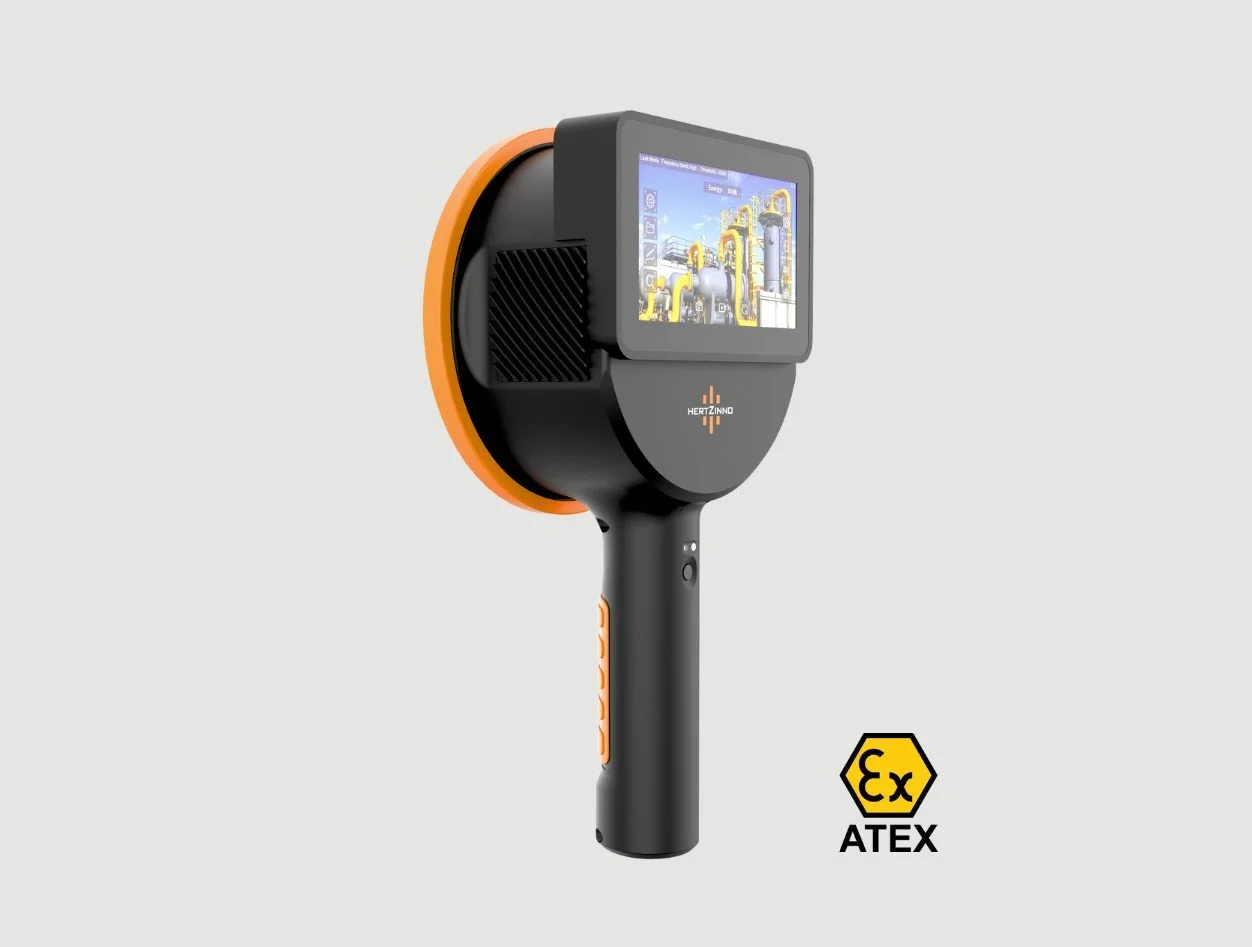

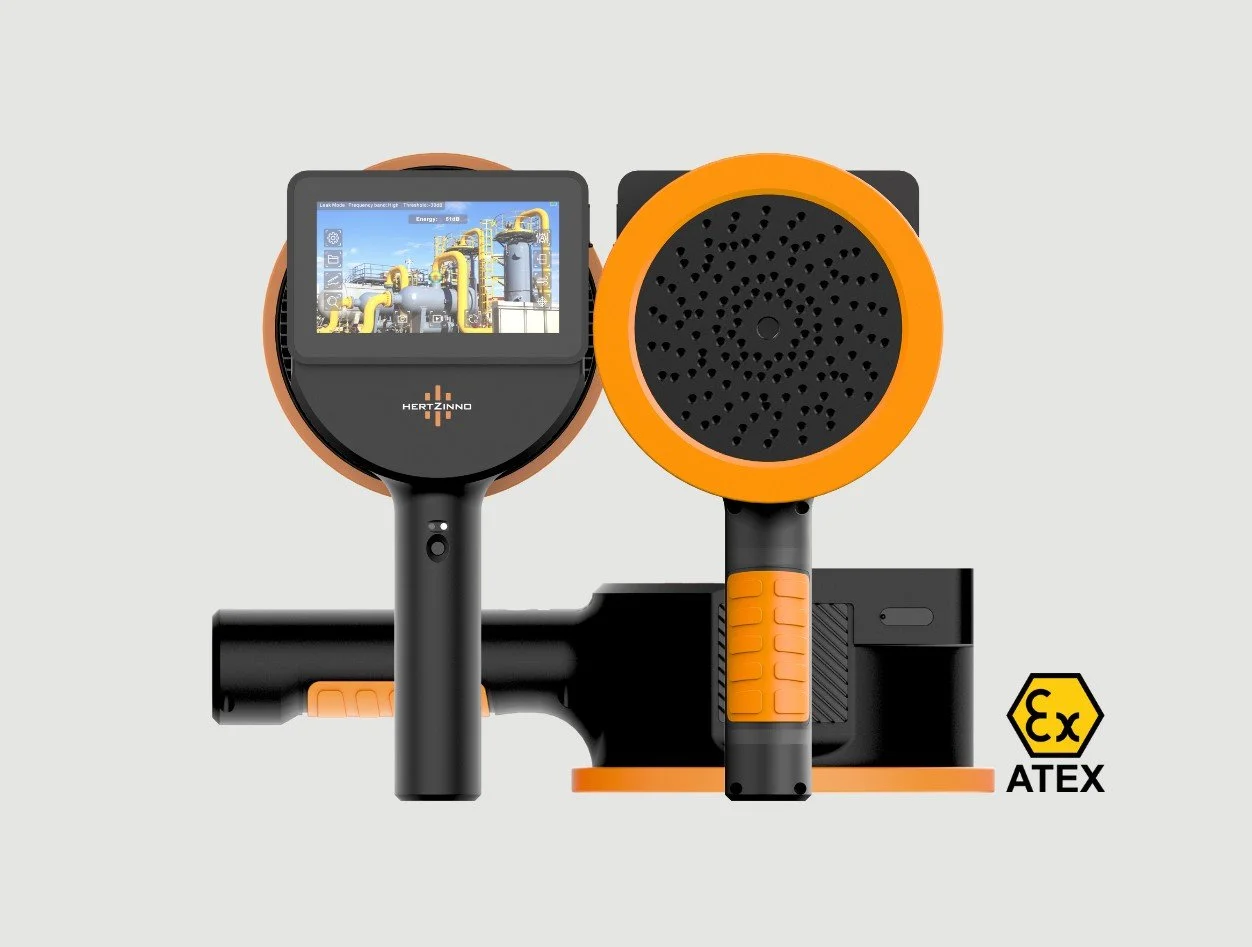

The HZ‑HA‑270P is one of the most advanced intrinsically safe acoustic imaging platforms available today. Designed for hazardous industrial environments, it integrates 138 digital MEMS microphones, AI‑enhanced diagnostics, and a high‑resolution 640 × 512 infrared imaging module—combining acoustic and thermal insights in a single portable device.
Despite its rugged certification, the 270P maintains a lightweight form at 1,000 g and delivers high performance with exceptionally low power consumption. Operating across a wide 2 kHz to 100 kHz ultrasonic spectrum, it provides precise detection and analysis of partial discharge activity, pressure‑driven gas leaks, and abnormal mechanical noise.
Key Features

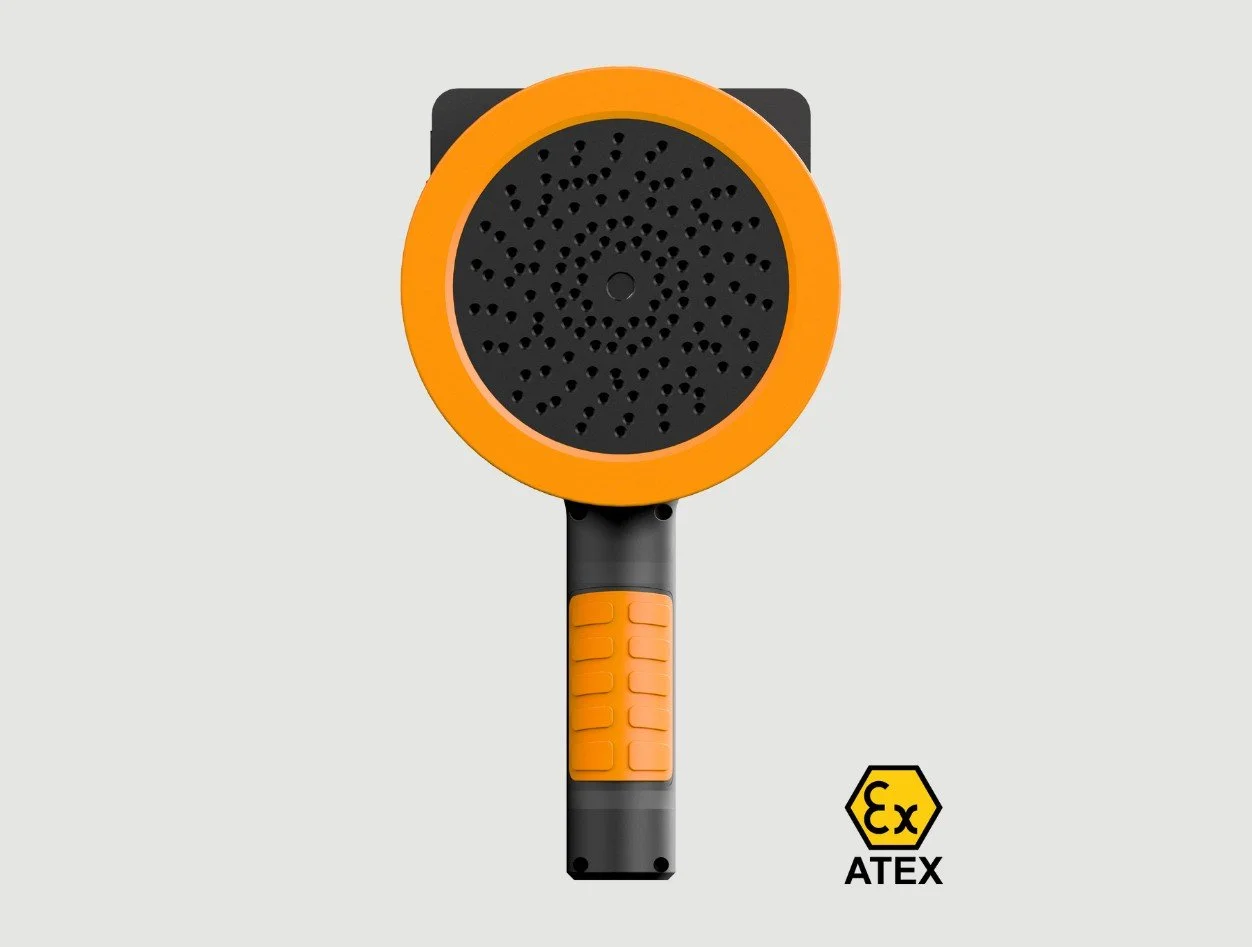

138 low‑noise MEMS microphones
640 × 512 high‑resolution IR camera
Ultrasonic frequency range: 2 kHz – 100 kHz
Supports: Partial discharge detection, gas leak identification, mechanical fault diagnosis
AI‑assisted analytics: PD type classification, gas leak assessment
ATEX‑certified for safe use in explosive or high‑risk environments
Industrial Acoustic Imaging System
For Partial Discharge Detection, Gas Leak Localization & Mechanical Fault Diagnostics
The HZ‑HA‑270P is one of the most advanced intrinsically safe acoustic imaging platforms available today. Designed for hazardous industrial environments, it integrates 138 digital MEMS microphones, AI‑enhanced diagnostics, and a high‑resolution 640 × 512 infrared imaging module—combining acoustic and thermal insights in a single portable device.
Despite its rugged certification, the 270P maintains a lightweight form at 1,000 g and delivers high performance with exceptionally low power consumption. Operating across a wide 2 kHz to 100 kHz ultrasonic spectrum, it provides precise detection and analysis of partial discharge activity, pressure‑driven gas leaks, and abnormal mechanical noise.
Key Features
138 low‑noise MEMS microphones
640 × 512 high‑resolution IR camera
Ultrasonic frequency range: 2 kHz – 100 kHz
Supports: Partial discharge detection, gas leak identification, mechanical fault diagnosis
AI‑assisted analytics: PD type classification, gas leak assessment
ATEX‑certified for safe use in explosive or high‑risk environments
