Portapipe®
Pipe Liquid Level Indicator
The Portapipe® is a portable, battery‑powered liquid level indicator developed for non‑intrusive measurement of liquid levels inside pipes. It provides accurate and dependable results without the need to penetrate or modify the pipework.
Suitable for use on both vertical and horizontal pipes with diameters ranging from 25 mm to 330 mm, the Portapipe® delivers precise measurements with accuracy to within ±1% of the actual liquid level.
Part Number: 3174740‑PIPE
CAGE Code: KD983 – Coltraco Limited
Portapipe®: A Versatile All‑in‑One Solution
Portapipe® features an integrated digital library containing a wide range of commonly used industrial liquids—such as fuels, fire suppression agents, and water—as well as typical pipe materials including copper, PVC, and carbon steel. This built‑in database enables fast configuration and straightforward measurements straight out of the case. Operators can also add new fluids or pipe materials by entering the relevant speed‑of‑sound data, allowing the instrument to be fully tailored to specific operational requirements.
Designed as a compact, handheld device, Portapipe® can be easily deployed across multiple pipe runs within a facility. Its fast and intuitive measurement process makes it suitable for routine monitoring, output verification, and leak identification whenever required. Supplied with two interchangeable sensor options, the system can be configured to suit a range of pipe diameters, while its IP65 environmental rating ensures reliable performance even in demanding industrial environments.
Overview
Dual‑Mode Liquid Level Measurement
The Portapipe® offers two operating methods, allowing it to adapt easily to different pipe orientations and measurement needs:
Horizontal Pipe Applications
When used on horizontal pipes, Portapipe® applies a time‑of‑flight measurement principle to calculate and display the liquid level as a percentage of the pipe’s total capacity.Vertical Pipe Applications
For vertical pipework, the device uses a presence‑detection approach. The sensor is moved incrementally along the pipe to identify the point at which liquid is detected, establishing the liquid level.
Switching between these two measurement modes is simple and can be done instantly via a single control, enabling fast deployment throughout a pipe network regardless of orientation. This flexibility makes Portapipe® suitable for a wide range of tasks, including assessing pipe fill levels, monitoring potential overflows, identifying blockages, and evaluating pipe capacity.
Technical Specifications
Dimensions
• 168 × 82 × 31 mm (L × W × D)
Weight
• 300 g (with batteries)
Power Supply
• 1 × 9V PP3 battery
Battery Life
• Up to 12 hours continuous operation
Operating Temperature
• −10°C to +65°C (14°F to 149°F)
IP Rating
• IP65 enclosure
Certifications & Approvals
• UKCA
• CE
• Manufacturer certified to ISO 9001:2015 & ISO 14001
Sensor Types
• DE2.5‑14: 14 mm, magnetically mounted
• DE5.0‑6: 6 mm, magnetically mounted
Sensor Frequency
• DE2.5‑14: 2.5 MHz
• DE5.0‑6: 5.0 MHz
Sensor Connectivity
• 0.9 m LEMO‑00 cable
Accuracy
• ±1% of true level
Display
• 128 × 68 backlit LCD
Diameter Range
• 15.0 – 331.0 mm (0.39″ – 13″)
Supported Fluid Types
Pre‑programmed fluids include:
• Fresh water (10°C, 20°C, 30°C)
• Sea water
• Diesel
• Petrol
• Fuel oil
• LPG
• Ethanol
• FK‑5‑1‑12
• Freon R134A
• Freon R22
• HFC‑227ea
• Methanol
Additional fluids can be configured by entering the speed of sound.
Warranty & Support
• Main unit: 3 years
• Sensors: 1 year
• Technical support: Lifetime of the unit

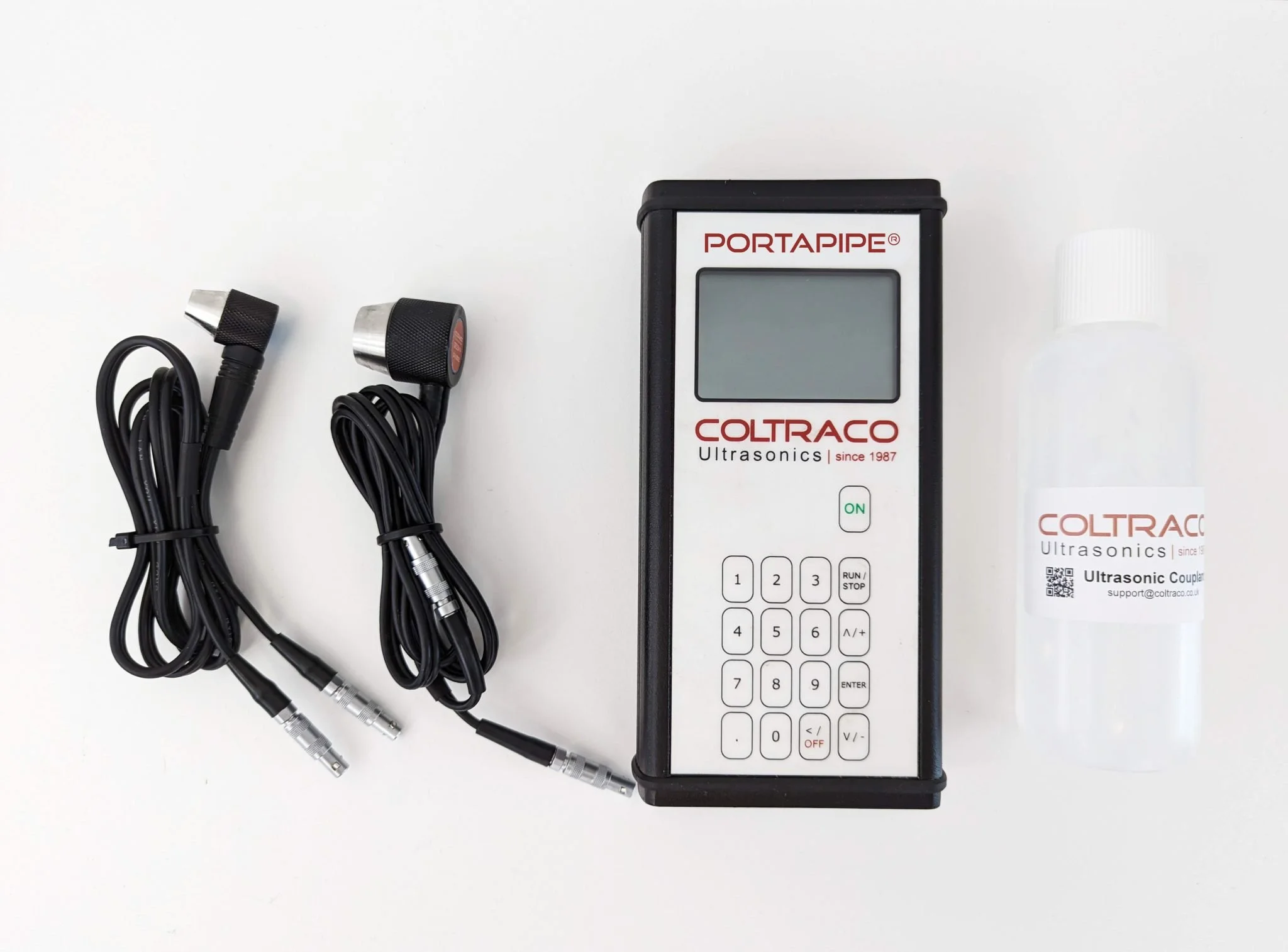

What’s Included
Portapipe® Main Unit:
2.5 MHz Dual Element Ultrasonic Sensor:
5.0 MHz Dual Element Ultrasonic Sensor:'
Ultrasonic Couplant:
User Manual:
Calibration Certificate:
Robust Carrying Case:ment.
