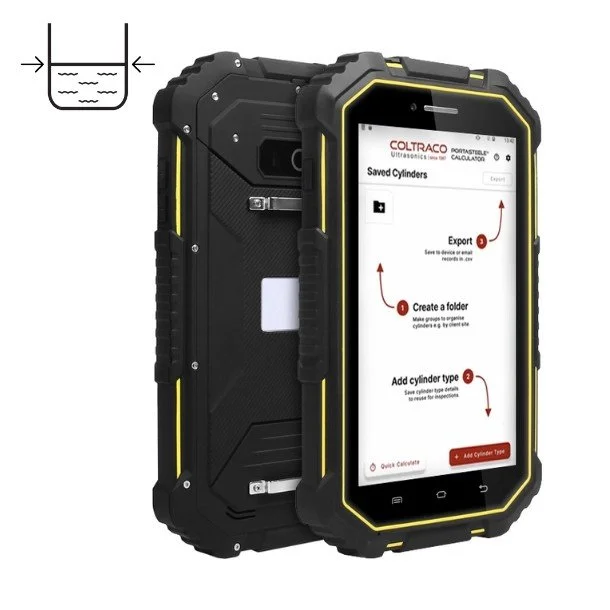

Liquid Level to Agent Weight Calculator & Data Logger

Portasteele® CALCULATOR

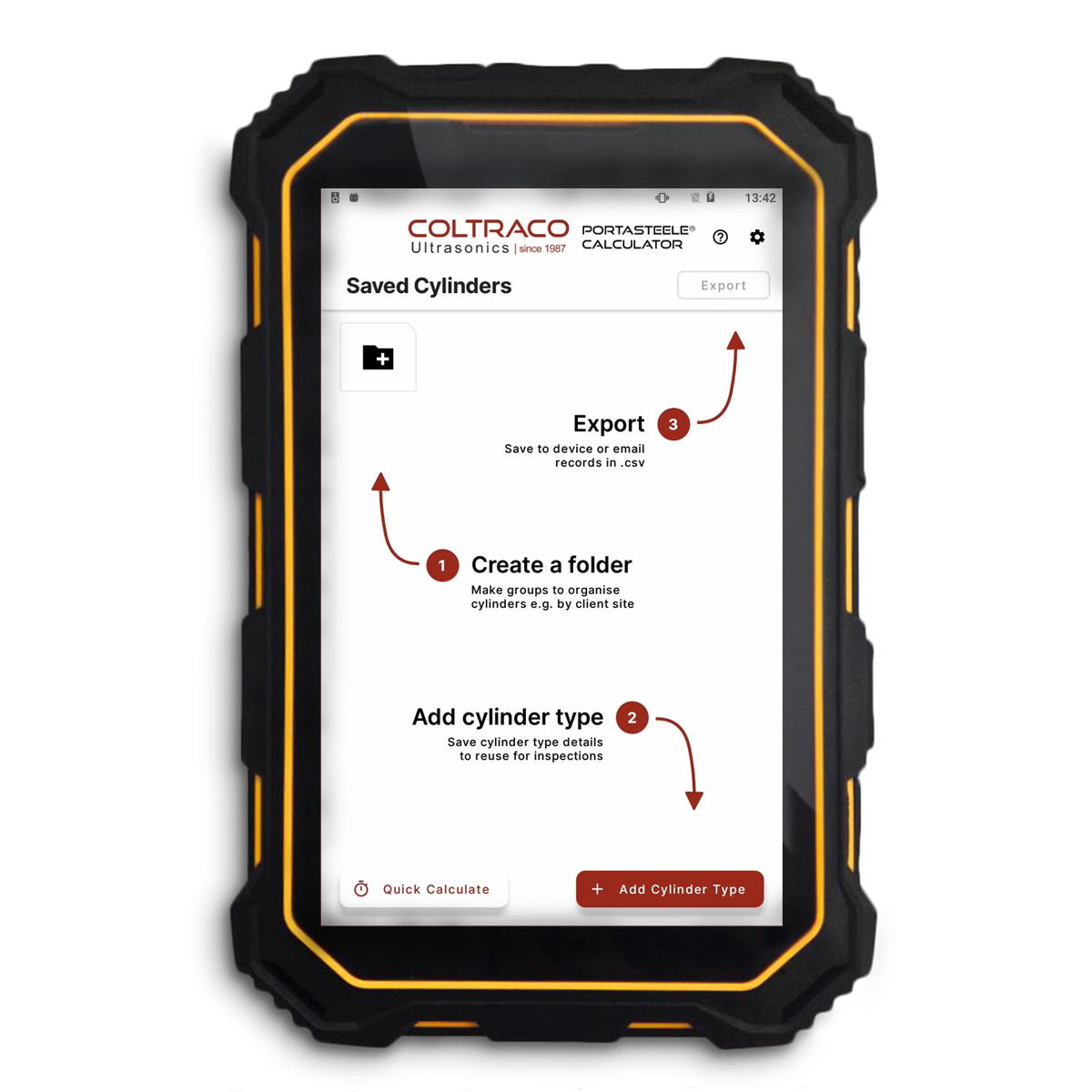

Smart Data Recording

The tool is intended for cylinders containing liquefied agents, where liquid and gas phases are distinct. Certain agents, such as CO₂ and FE-13, can reach their “critical point” at standard atmospheric temperatures under pressure. At this point, the substance becomes a supercritical fluid, eliminating any clear liquid level, making level-based monitoring impossible.

To maintain accuracy, the calculator prevents data recording for substances likely to be in this state. For example, CO₂ reaches its critical point at 31°C; if a user enters a temperature above this threshold, the system will display an error and block saving the measurement.

Liquid Level to Weight Conversion Tool

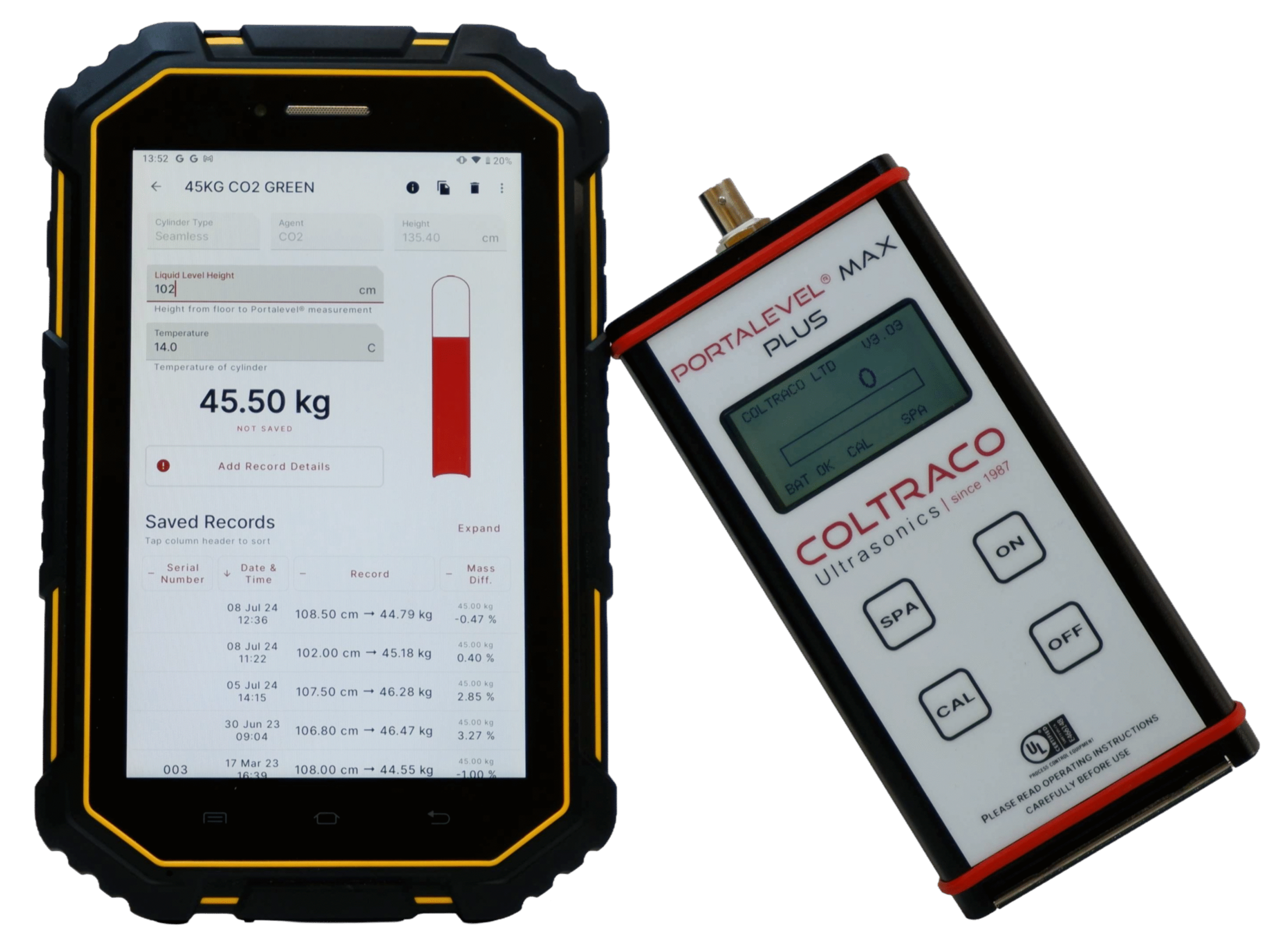

This calculator is designed to work seamlessly with ultrasonic liquid level measurement devices. It enables you to convert a measured liquid level into an accurate weight of the agent. The results can be stored and exported for record-keeping and compliance purposes.

Ideal for use alongside ultrasonic level indicators.

Part Number: CALC-007
CAGE Code: KD983 – Manufactured by Coltraco Limited

Brochure

Overview

Liquid Level to Agent Weight Calculator & Data Logger

Monitoring the contents of fire suppression cylinders using ultrasonic liquid level detection is far more practical than removing and weighing each cylinder individually. This method is faster, simpler, and safer because it avoids system downtime. However, manufacturers typically provide only the fill weight of a cylinder, not its liquid level. Additionally, liquid level varies with temperature due to changes in density, and these variations differ across agents and cylinder sizes, making accurate predictions complex.

This calculator addresses these challenges by using cylinder dimensions provided by the user and liquid level measurements from an ultrasonic level indicator to calculate the agent weight with high precision. It automatically compensates for temperature effects, delivering results accurate to within 1% of the true value. This enables direct comparison between measured levels and the documented fill weight, ensuring exceptional traceability.

Technical specifications

Dimensions 216mm x 136mm x 19mm

Weight: 558g

Water/dustproof rating IP67

Materials PC+TPU

Sim Card Dual SIM card dual standby (1 micro + 1 nano)

OS Android 9.0

CPU Android 9.0

Data Transfer USB Type-C/BT

Screen 7.0-inch HD IPS capacitive touch screen, 1280 x 800px

Power Supply

  • Built-in 8000mAh rechargeable Li-ion battery

  • Up to 200 hours standby time

Compatible Agent Types

  • CO2

  • FM-200®

  • NOVEC™1230

  • Halon 1211

  • Halon 1301

  • Fe-13™

  • FE-25™

Accuracy Accurate to 1% of true agent weight when used with a Portalevel® unit

Cylinder Type

  • Welded cylinders

  • Seamless cylinders

What’s Included

  • Handheld Device: Rechargeable 7-inch touchscreen preloaded with the liquid level-to-weight conversion application.

  • USB Type-C to USB Type-A Adapter: Enables direct connection of a USB drive for exporting data.

  • USB Type-C Cable: For charging and data transfer.

  • Power Adapter: For charging the device.

  • USB Drive: Used to store and transfer your data.

  • Quick Start Guide: Provides detailed instructions on how to operate the calculator.

  • Phillips Screwdriver (#1 size): For removing the backplate to access the SIM card slot (optional, not required for standard use).

Ultrasonic Liquid Level Indicators

  • Portalevel® IS

    Portalevel® IS

    Choose for EX-Rating

    Choose for testing in ATEX Zone 1 classified areas

    Choose for testing in IECx classified areas

    Choose for cylinders up to 400mm in diameter

    Click Here
  • MAX MARINE PLUS

    MAX MARINE PLUS

    12mm slimline extension rod sensor.

    Choose for LIQUID/GAS readings

    Choose for UL, RINA and ABS Type Approval.

    Choose for cylinders up to 400mm in diameter.

    Click Here
  • Portamarine®

    Portamarine®

    20mm standard extension rod sensor

    Choose for cylinders up to 320mm in diameter

    Choose for RINA Approved, IMO

    SOLAS FSS compliant

    Click Here
