Tethys one
The TETHYS ONE ROV is a compact, remotely operated underwater vehicle designed for deep-sea exploration and inspection tasks. Built for versatility and ease of use, it features high-resolution cameras, powerful thrusters for precise maneuvering, and a durable frame capable of withstanding harsh marine environments.
Ideal for scientific research, infrastructure inspection, and environmental monitoring, the Tethys One combines portability with advanced underwater capabilities, making it a reliable tool for both professionals and researchers.
Automated inspection and assessments in rough waters
Tethys takes the inspection to a new level where it can be performed reliably, safely, efficiently, anywhere, and anytime.
Specifications
35 KG
ROV Weight
300M
Depth rating
10 MIN
Setup Time
2 KM
Wired operating range
3,5 KN
Water current with stationary Inspection
4 hours
Runtime (hot-swappable batteries)

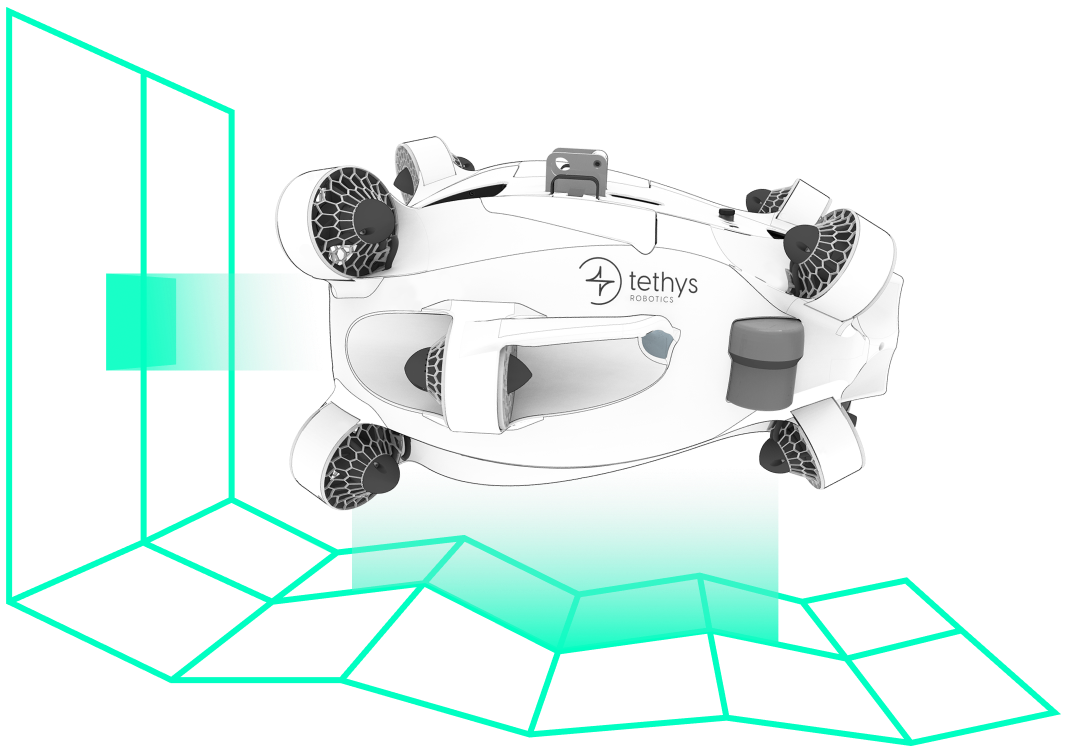

o2
360º terrain awareness
• movement control 360º in roll, pitch, and yaw
• DVL, side- and front-facing sonar sensors for 360º awareness
• terrain following
• obstacle avoidance
o4
Intuitive manipulation
• 4D manipulation & grabber
• underwater lifting capacity: equivalent of one fully equipped diver
• allows new operators to effortlessly manipulate and interact with the environment
O1

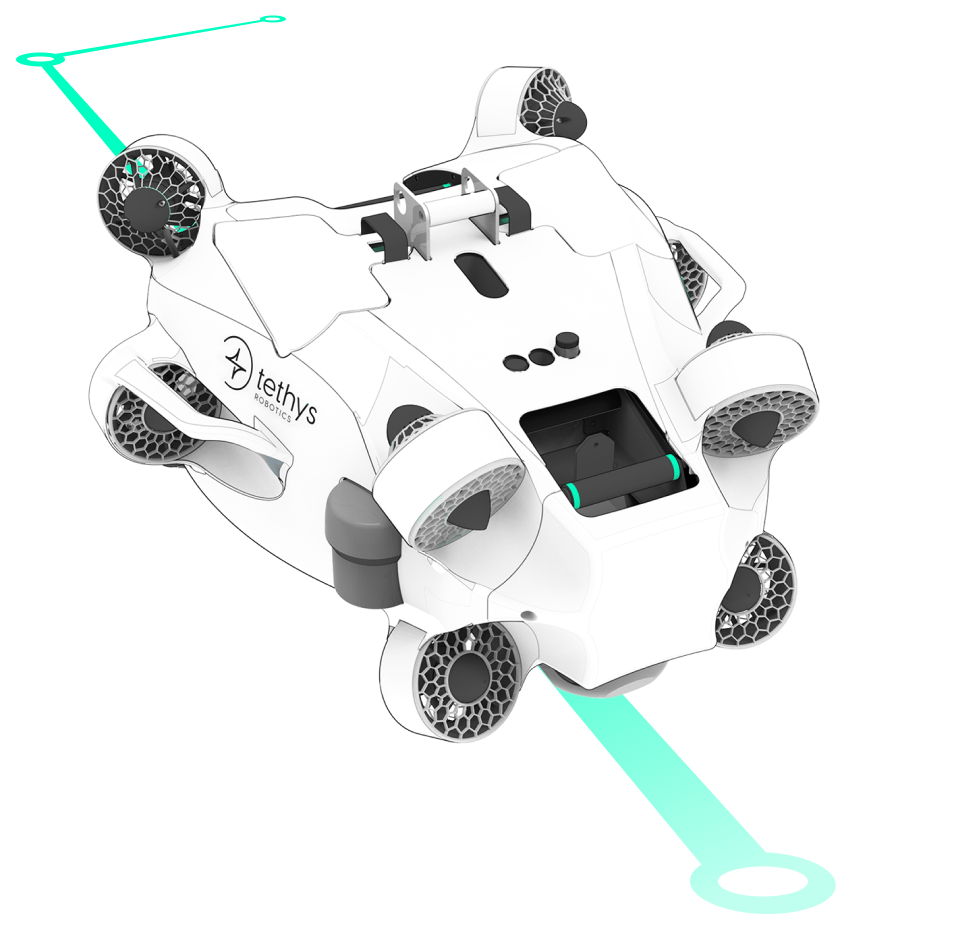

Autonomous Operation
• autonomous & repeatable area coverage/structure scanning
• position & orientation hold
• depth and distance lock to ground and objects
o3

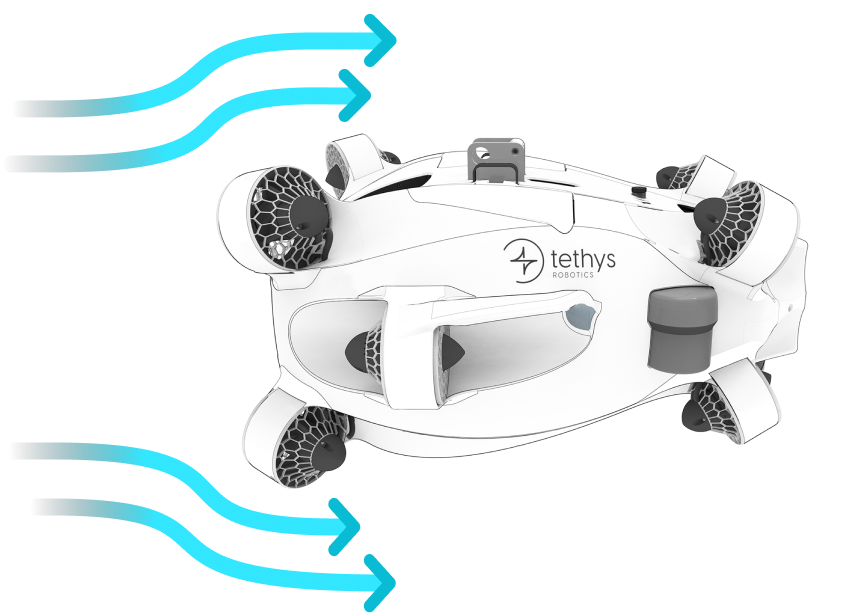

positioning in strong currents
• drone holds position on its own, despite strong currents
• stationary work in water currents up to 3.5 knots
• operation in rivers and tidal currents
o5

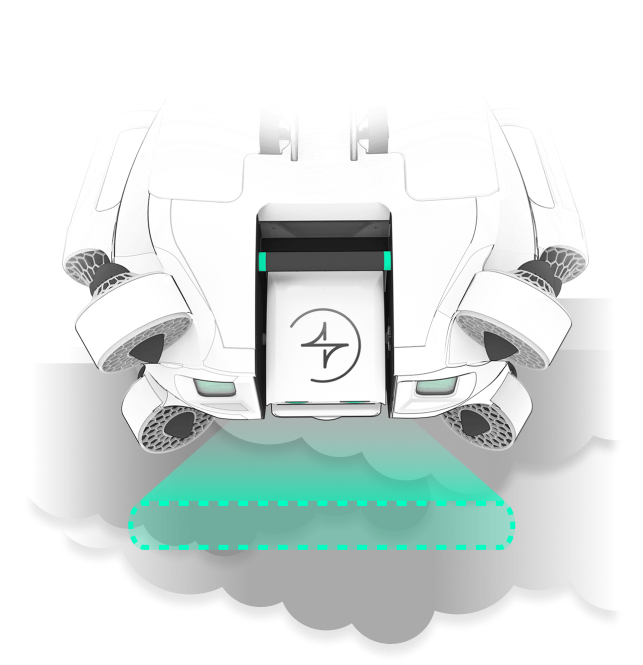

Recording & reporting
• 3D mapping in poor visibility
• user-friendly UI with mini-map
• 180º tiltable full HD cameras & front-facing multibeam sonar
• placing points of interest any time
• live recording and reporting during mission
• post-processed photogrammetric & acoustic 3D models enabled
Modular by Design
Tethys One is a fully equipped underwater drone featuring a standard sensor suite that enables precise navigation and detailed mapping.
Its adaptable architecture supports a wide range of payloads, allowing seamless integration with tools for environmental monitoring, object manipulation, and high-accuracy scanning. Elevate your 3D modeling with data inputs like metal detection, water flow, pressure, temperature, oxygen concentration, material thickness, and non-destructive testing (NDT), among others.
-
The 4-axis manipulator is a soft-end effector and enhances versatility and precision by providing multi-directional control, allowing for intricate and efficient handling of objects in various applications.Optional: Soft end-effector for enhanced manipulation
-
Underwater metal detector: It is an essential tool for marine missions, utilizing electromagnetic fields to accurately locate metal objects beneath the water's surface.
Magnetometer: It serves as a key tool for detecting and mapping magnetic anomalies beneath the ocean's surface, aiding in various applications.
-
By emitting sound waves to the ocean floor, sonar systems generate intricate images of underwater landscapes and objects, facilitating efficient seabed mapping and target detection. In addition to a standard forward-looking multibeam imaging sonar, we also offer the option to install side-scan sonars.
-
DVLs (Doppler Velocity Logs) enable accurate underwater navigation, altitude maintenance, and real-time velocity measurement by analyzing Doppler shifts from acoustic signals reflected off the seabed. Additionally, they can assess current profiles for flow analysis. -
Short Baseline System (SBL) utilizes sound waves for measuring underwater depths and determining the global position of the underwater drone. Additionally, it can be outfitted for use by nearby divers.
-
A CTD sensor measures the conductivity, temperature, and depth of water with high precision, providing crucial data for determining essential physical properties of the environment
An underwater pH sensor plays a central role in marine studies, as it measures the acidity or alkalinity of the water and thus provides important data for monitoring the aquatic environment.
